Lumbar Support

Lumbar support

Replacing lumbar support

Remove:
- the backrest upholstery according to Backrest upholstery Backrest Upholstery.
- the lumbar support strap according to Lumber support strap Lumbar Support Strap.

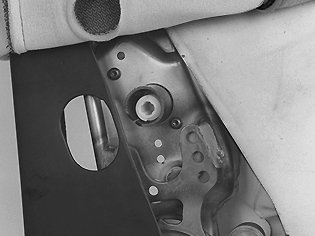

Remove two screws from the mechanism.
Press the mechanism inwards.
Unhook the spring from the backrest frame.
Replace damaged components.

Install:
In reverse order.
