SIPS Airbag

SIPS airbag

Preparations

Remove:

- battery negative terminal.
- the backrest upholstery according to Backrest upholstery [1][2]Procedures

Removing the front seat SIPS airbag

Fold out and remove the protective pad on the side of the seat that contains the SIPS airbag.

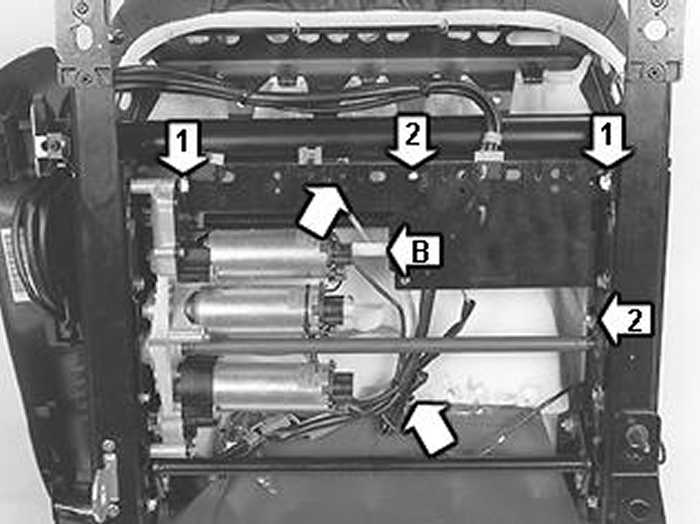

Remove:

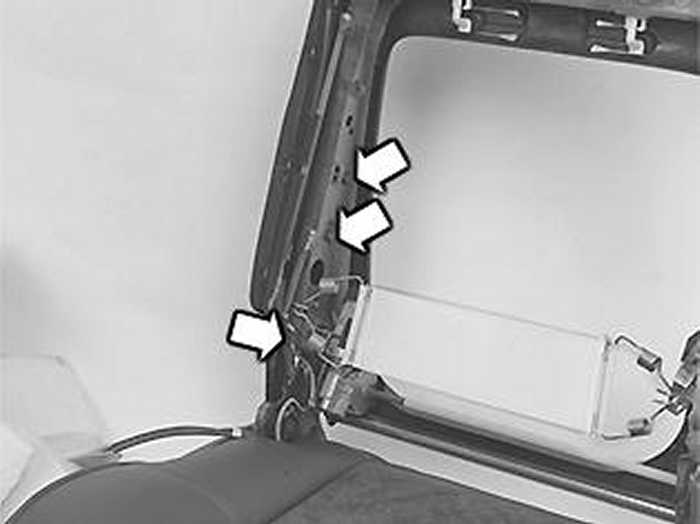

- the two screws that hold the SIPS airbag to the inside of the backrest frame.
- tie straps.
- steel clip.






Disconnect the connector clip.
Cut the tie strap.
Expose the wiring.
Replace the SIPS airbag.

Installation

Install:

In reverse order.

Tighten the SIPS airbag screws to: 6�Nm.
