Seat Track: Service and Repair



Seat rail

Replacing seat rail

Remove:






- the seat from the car according to Lifting the power seat in and out Lifting Power Seat In & Out

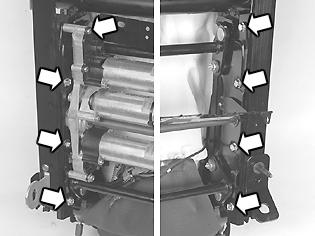

- four screws.

Pull the rail straight out and remove.

Install:

In reverse order.

Note! Ensure that the rails are parallel when installing them.
