Rear Height Adjustment Motor (Rear Motor)

Rear height adjustment motor (rear motor)

Preparations

Remove:

- the seat from car according to Lifting the power seat in and out
- the connectors according to Connector

Removing the rear motor

Remove:

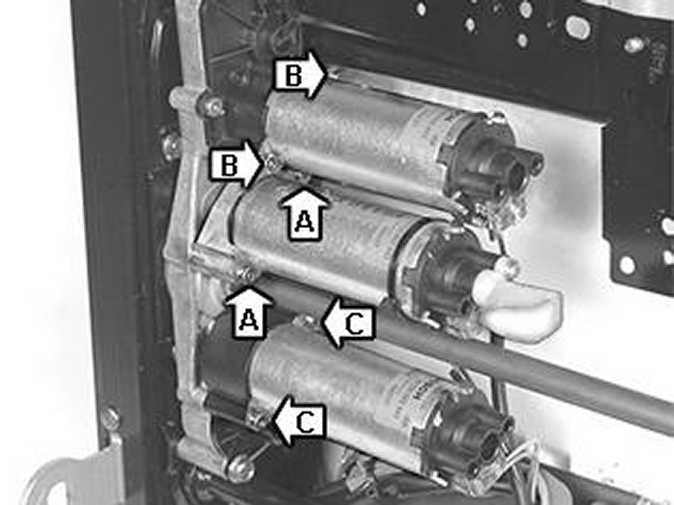

- two screws (C)
- the motor.

Install:

In reverse order.

Tightening torque for the seat to the floor: 48 Nm
