Potentiometer For Rear Height Adjustment Motor

Potentiometer for the rear height adjustment motor

Removing the potentiometer






Set the seat height adjustment to its uppermost position.
Remove the seat from the car according to Lifting the power seat in and out Lifting Power Seat In & Out
Unclip the cover.

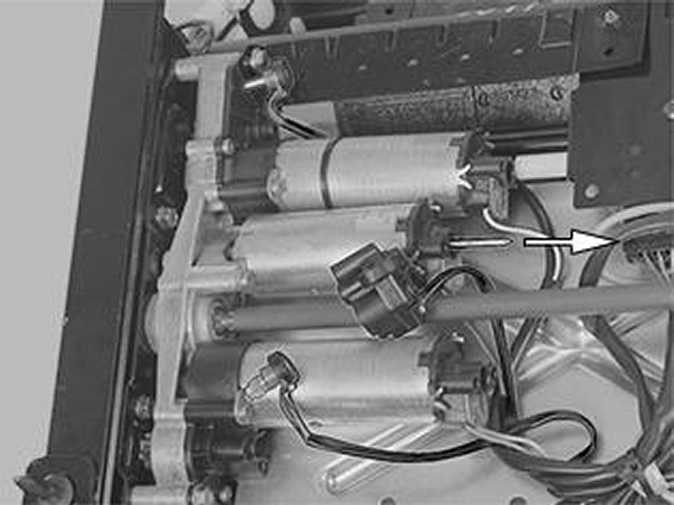

Pull out the potentiometer.
Disconnect the connectors and wiring.

Install:

In reverse order.
