Potentiometer & Shaft For Front-Rear Adjustment Motor

The potentiometer and shaft for the front-rear adjustment motor

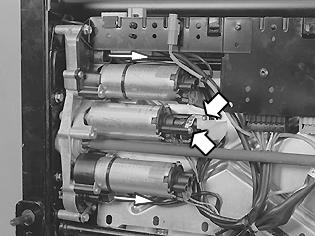

Removing the potentiometer






Set the seat height adjustment to its uppermost position.
Remove the seat from the car according to Lifting the power seat in and out Lifting Power Seat In & Out
Disconnect the connectors and wiring.






Remove the two screws.

Install:

In reverse order.

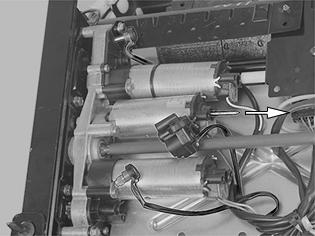

Disconnecting the shaft






To remove the potentiometer, see Removing the potentiometer

Pull out the shaft.

Install:

In reverse order.
