Front Height Adjustment Motor (Front Motor)

Front height adjustment motor (front motor)

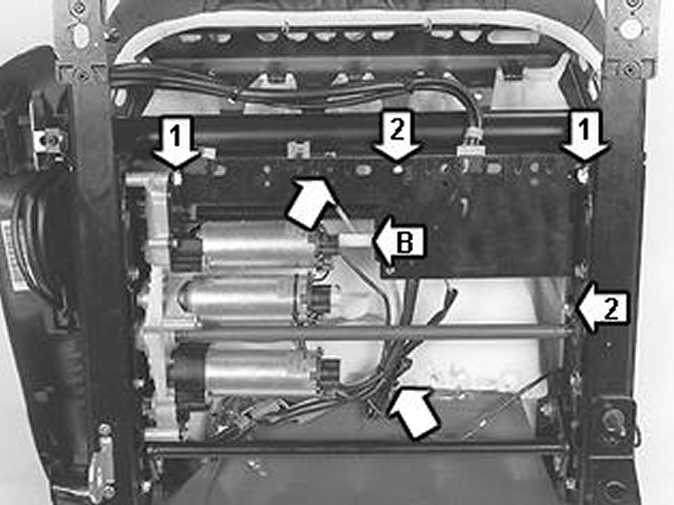

Preparations

Remove:

- the seat from car according to Lifting the power seat in and out Lifting Power Seat In & Out
- the connectors according to Connector Connector

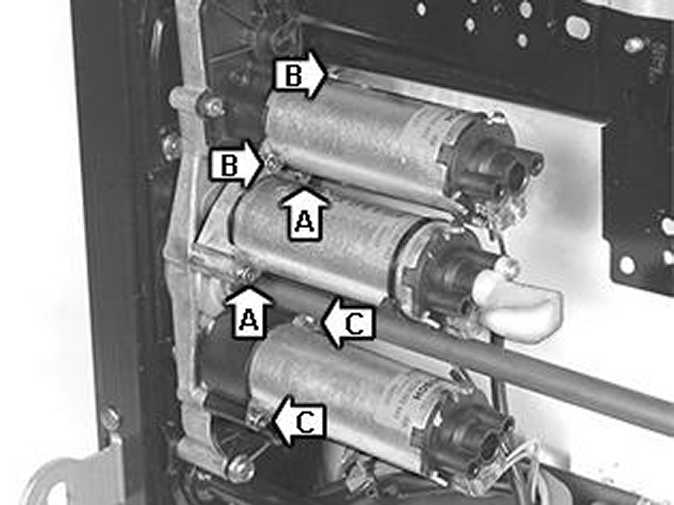

Removing the front motor






Remove one screw and spacer (B).

Remove:






- two screws (B) and (R).
- the motor.

Install:

In reverse order.

Tightening torque for the seat to the floor: 48 Nm
