Without Memory

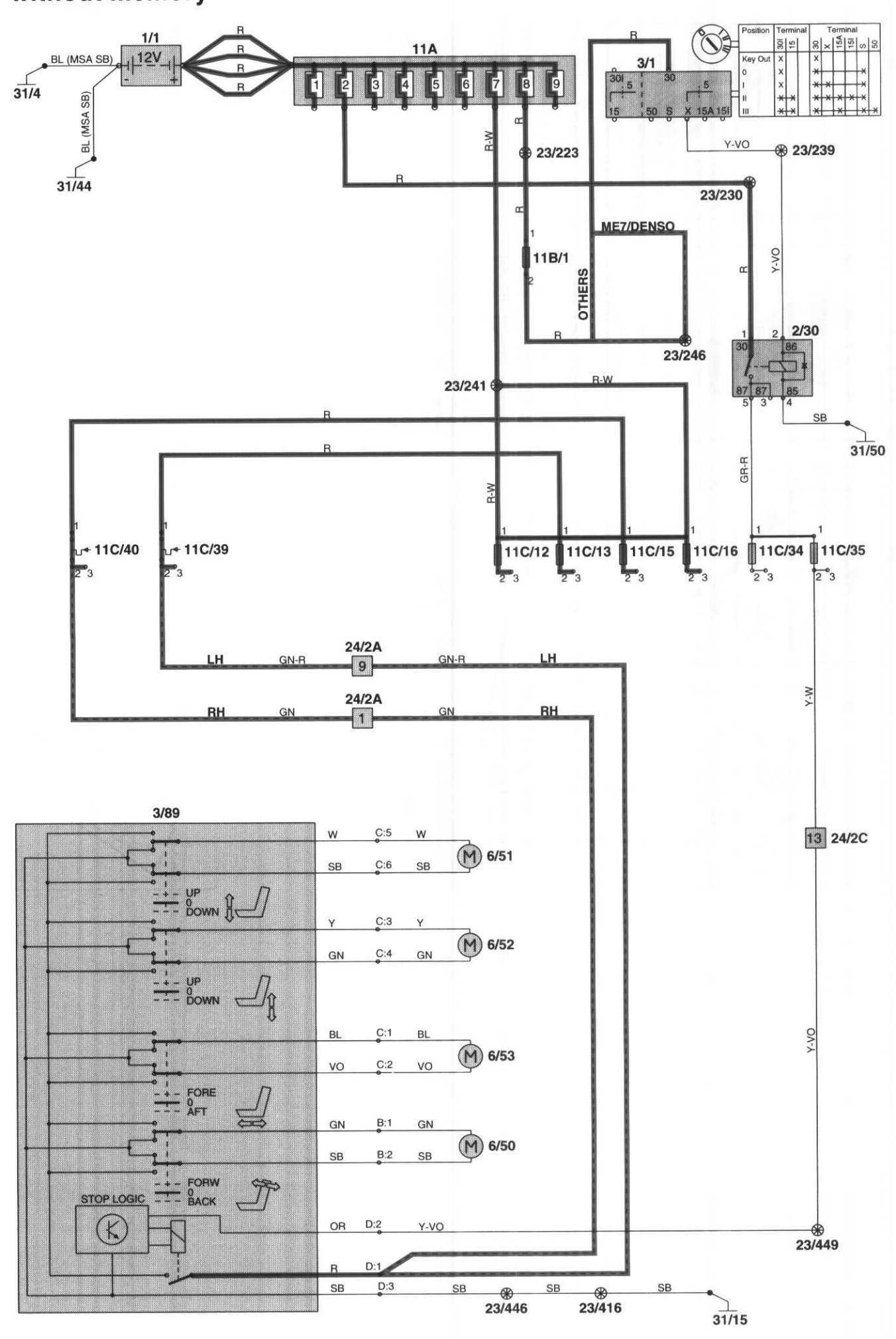

Power Seats Without Memory - Wiring Diagram:

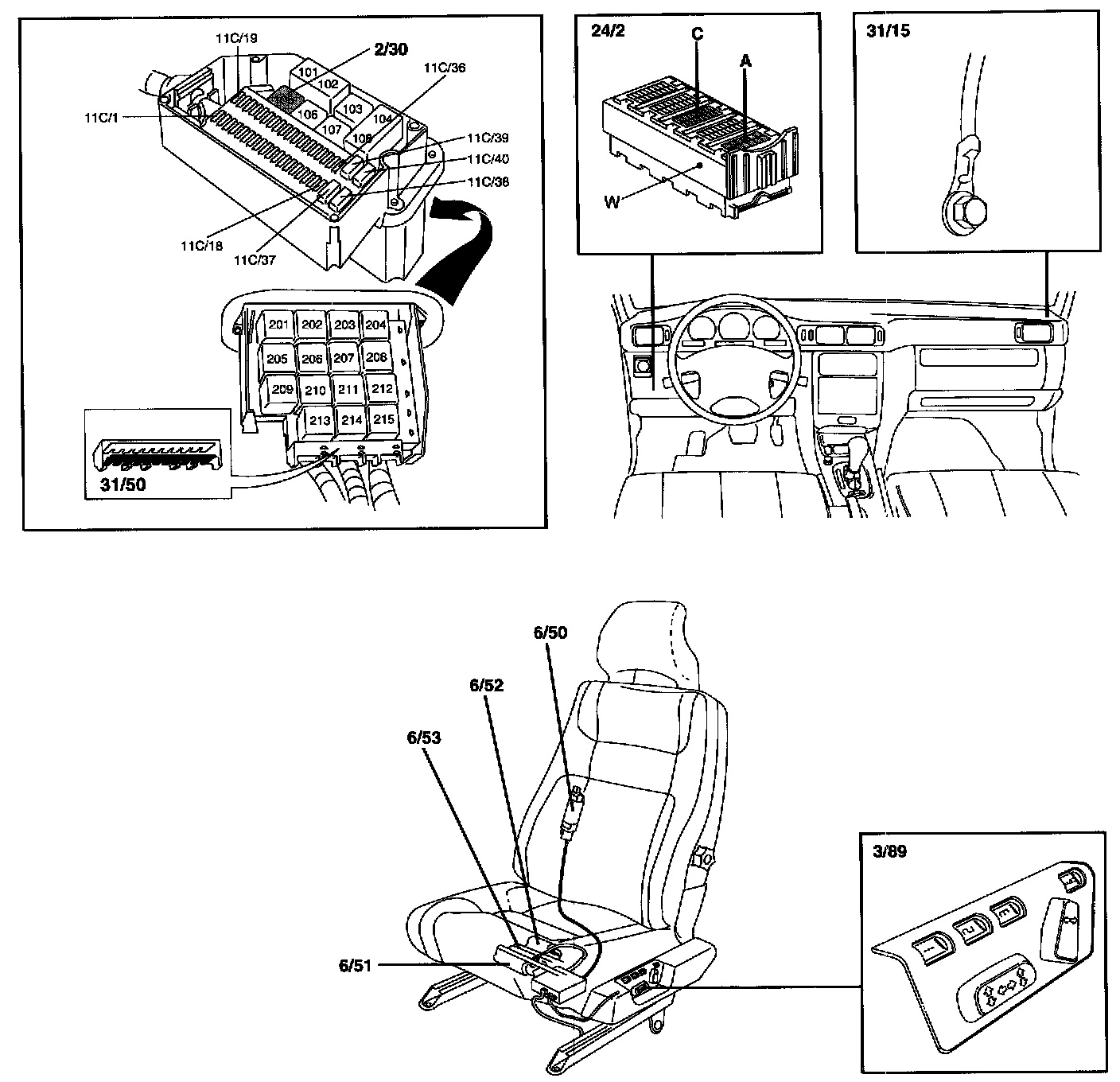

Power Seats Without Memory - Component Location:





To identify components from the numeric designation, see "Component I.D List (Name and Numeric Designation)". Diagram Information and Instructions
