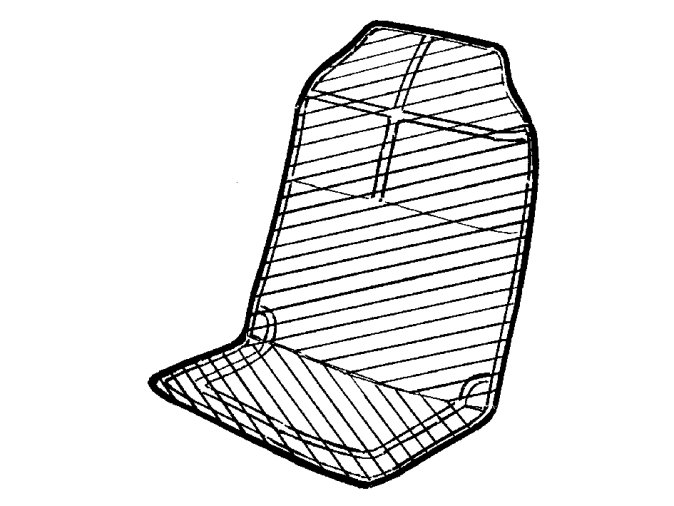

Kick Guard, Child Seat

Kick guard, child seat















Kick guard, child seat

The kick guard can be used in the following locations

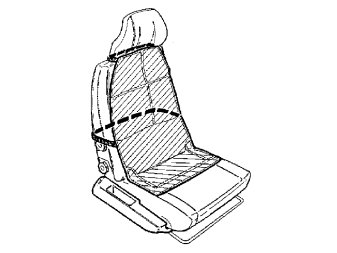

- The kick guard can be installed on the front passenger seat when using the rear facing child seat as illustrated
- Thread the elastic straps around the head rest and the backrest of the front seat.

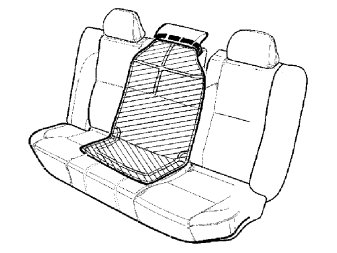

- The kick guard can be positioned on the centre head restraint when the child seat is installed facing backwards in the rear centre seat. Use the uppermost elastic strap as illustrated

Note! The head restraint must be pulled up. Exception: Not suitable for Volvo models without a head restraint in the rear centre seat.

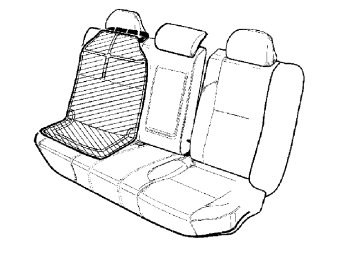

- The kick guard can be positioned on the head restraint for the rear seat when the child seat is installed facing backwards in the rear outer seat. Use the uppermost elastic strap as illustrated.

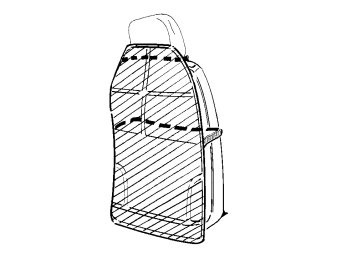

- The kick guard can be positioned on the reverse of the front seat when the child booster cushion / seat is installed facing forwards in the outer position of the rear seat. Thread the elastic straps around the backrest as illustrated.
