Baby Insert, Child Seat

Baby insert, child seat

Applies to 5-point seat belts

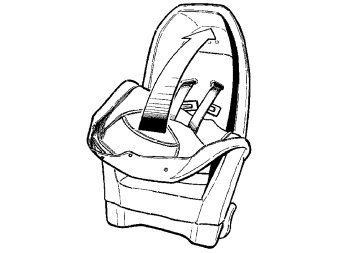

- Release upholstery at upper edge and pull forward.
- Note which group of holes the shoulder straps are routed through.
- Remove the shoulder straps (1) by pulling through the holes.

Applies to 5-point seat belts

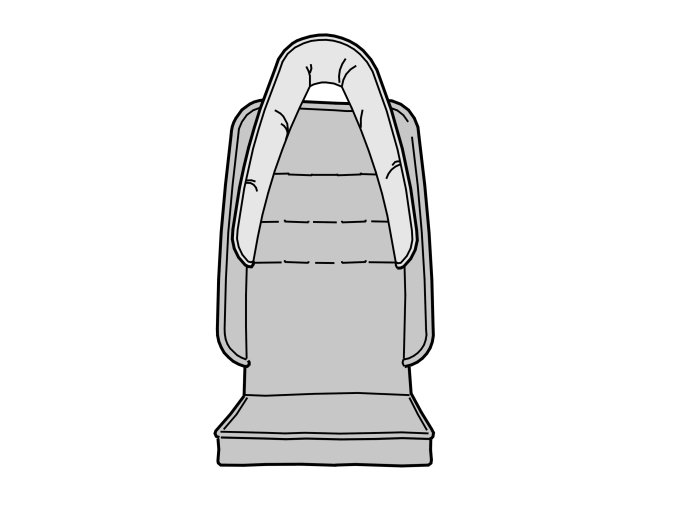

- Install the baby insert.
- At the appropriate height thread the shoulder straps through the holes in insert, upholstery and seat back.

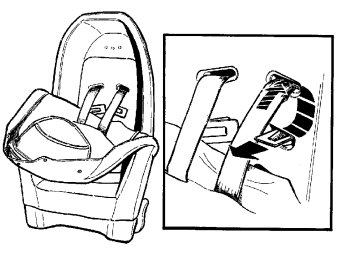

- Thread the shoulder strap locking washers through the holes as illustrated.
- Check that the locking washers are correctly positioned.

Applies to 5-point seat belts
- Fold the upholstery back and press into place with the two clips.
- Straighten the upholstery.

Applies to 4-point seat belts
- Thread the child seat harness through the holes in the baby insert.

Applies to 4-point seat belts

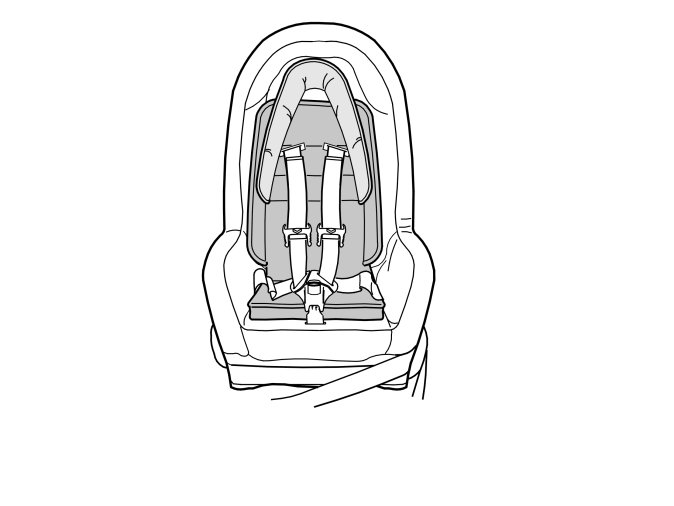

- Position the baby insert correctly in the child seat and pull the harness lap belt forward.

Applies to both the belts
- Adjust the baby insert according to the child's height by moving the upper collar upwards or downwards.
