Opening and Closing the Convertible Top

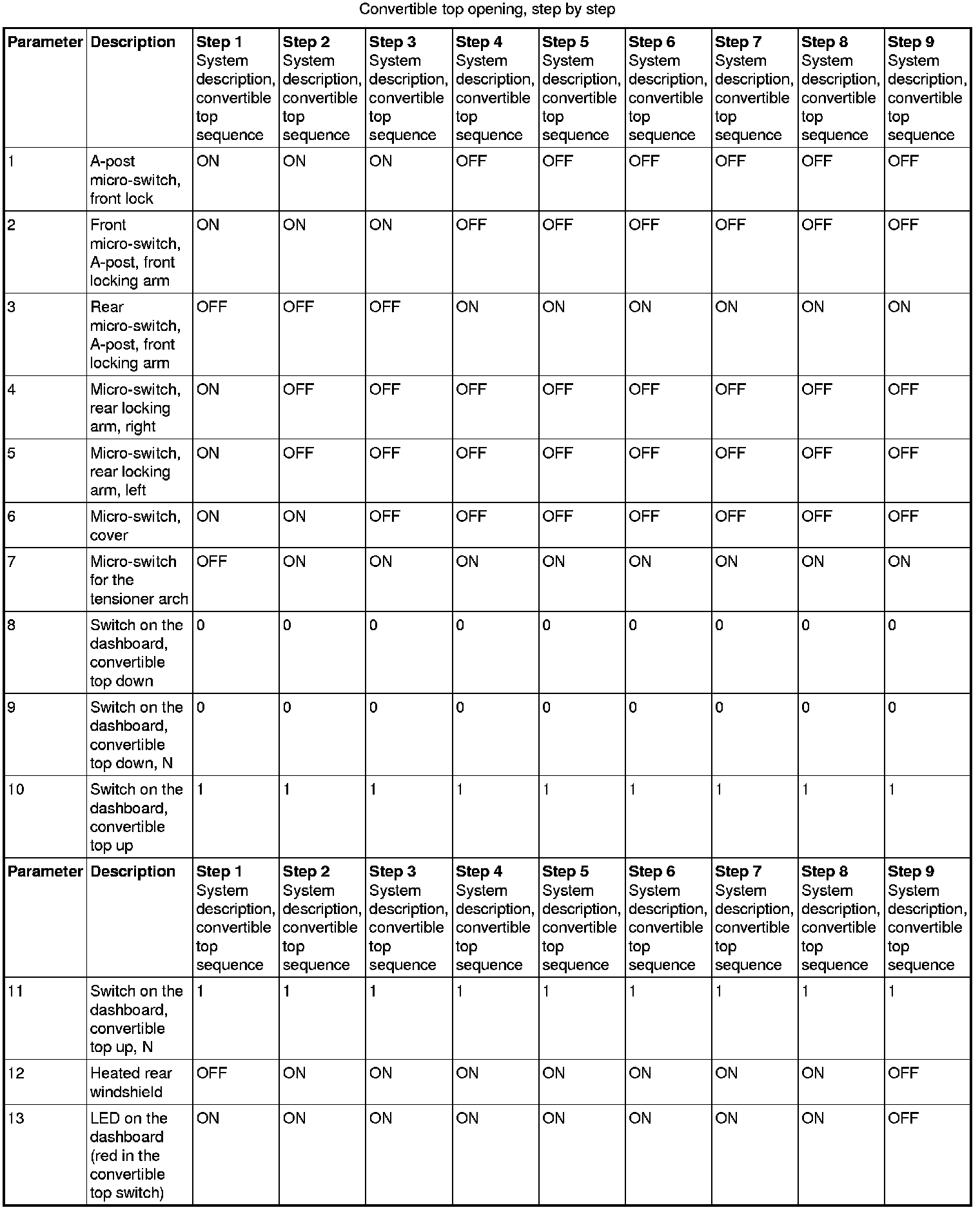

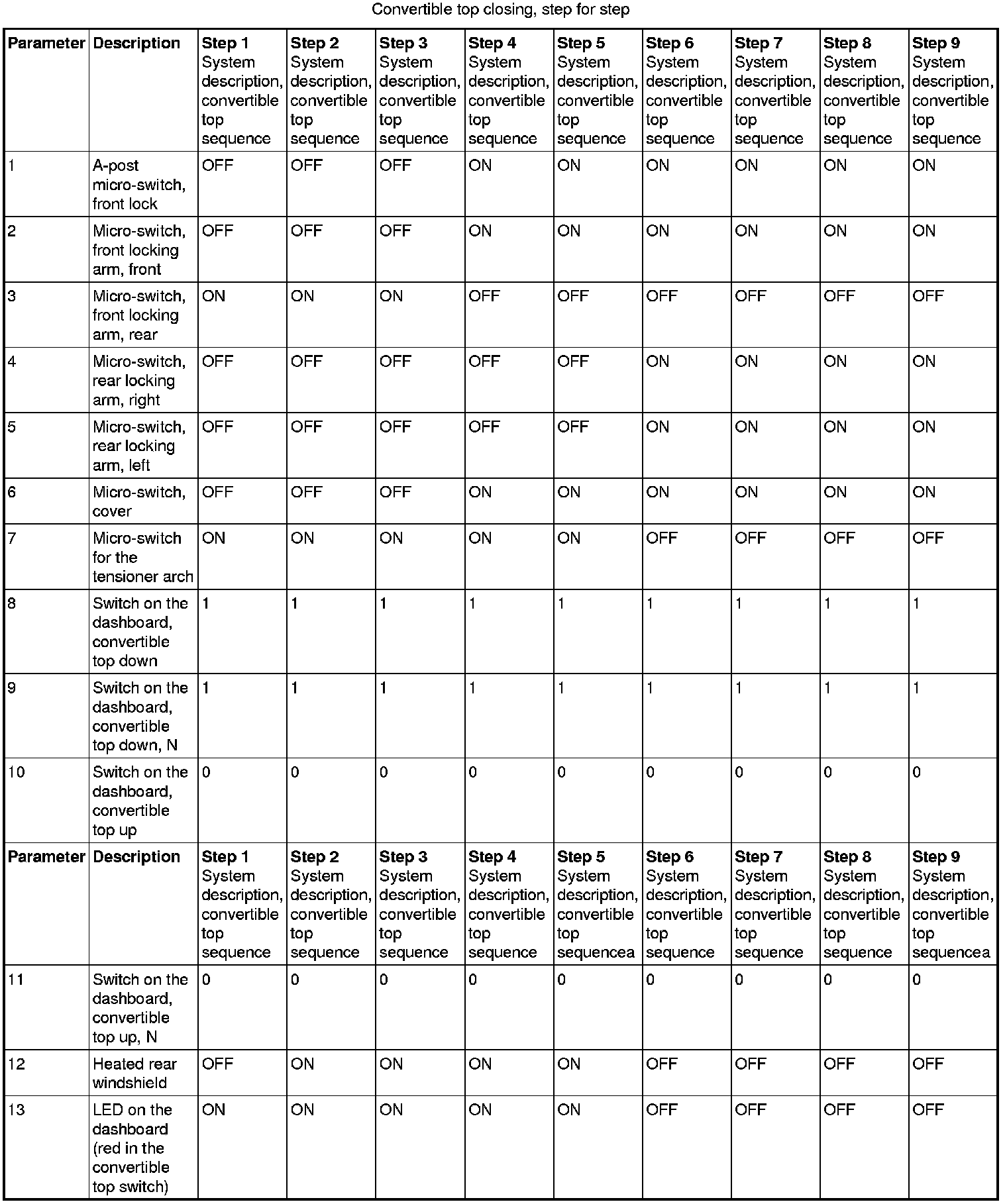

Opening and closing the convertible top

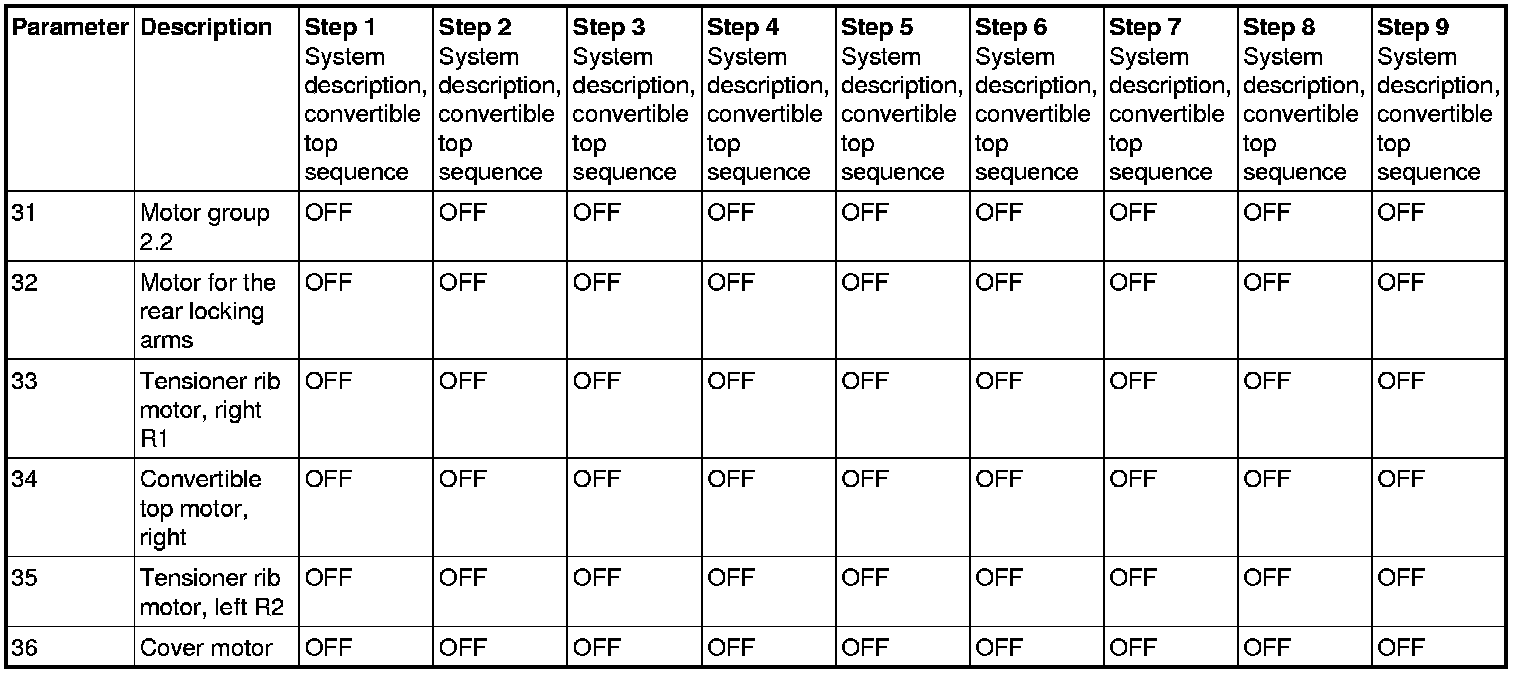

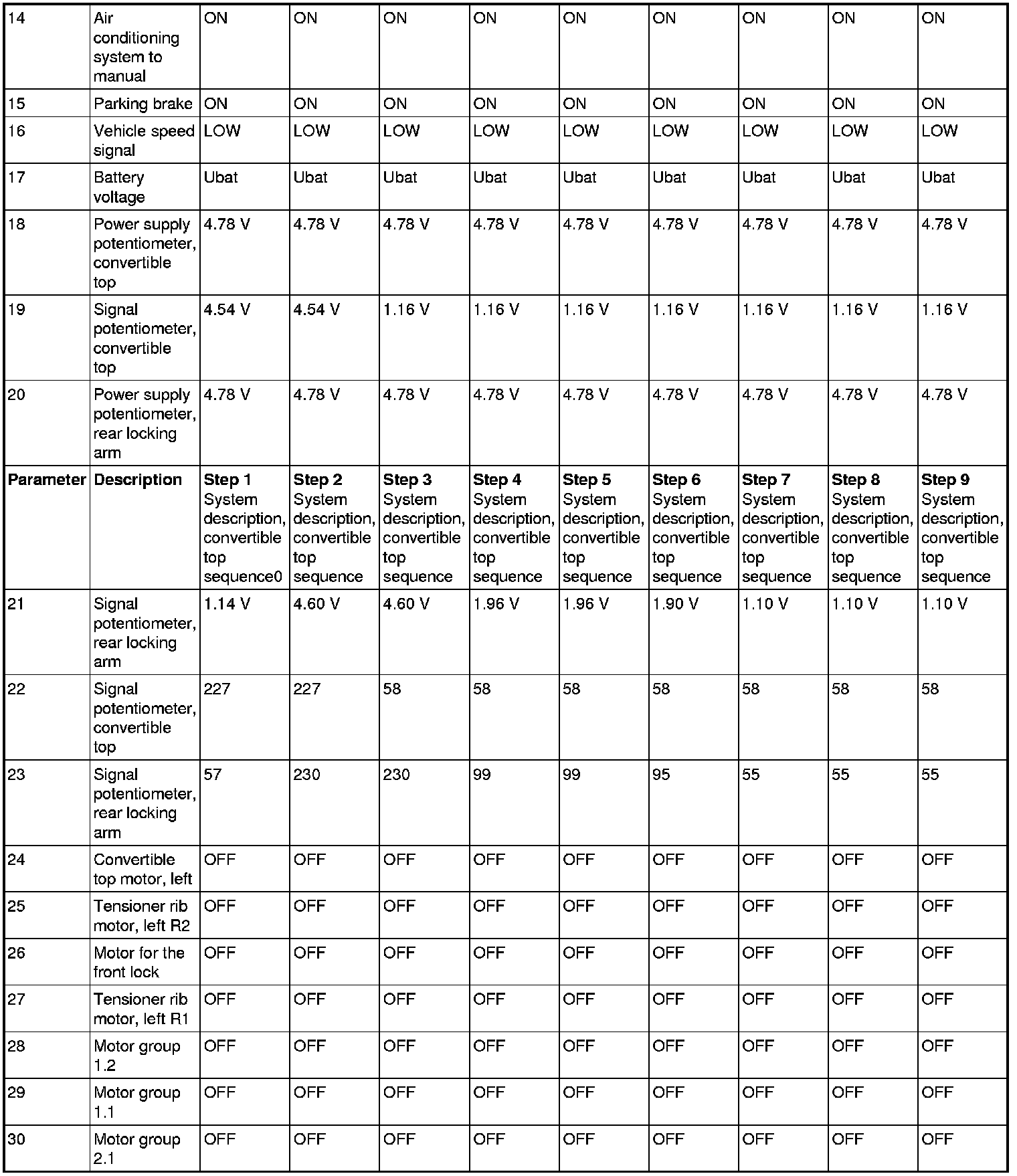

Note! All the voltage signals in the table may vary from car to car. They should not be considered as absolute values.

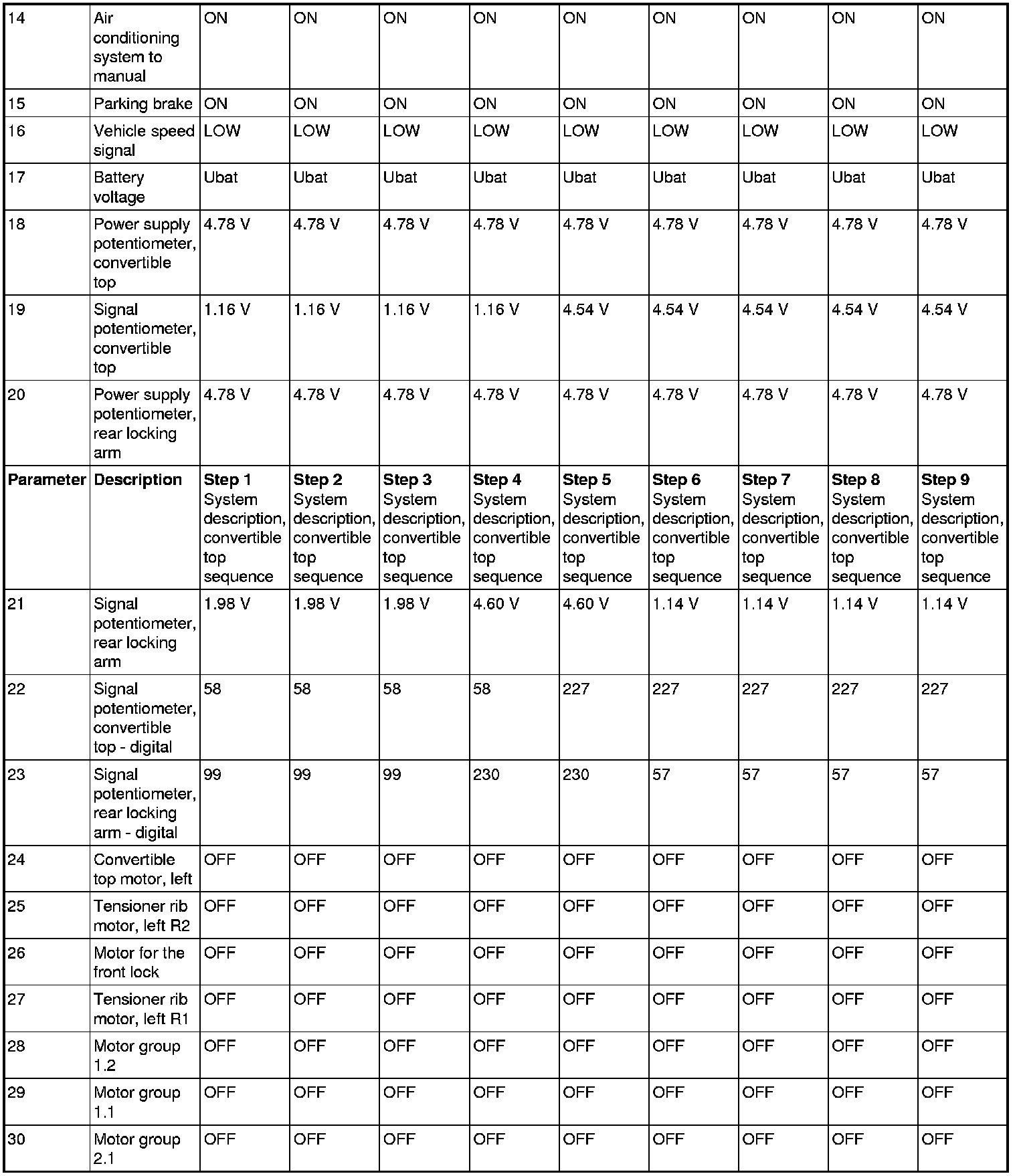

Note! All the voltage signals in the table may vary from car to car. They should not be considered as absolute values.
