Initial Inspection and Diagnostic Overview

BOA1 Testing

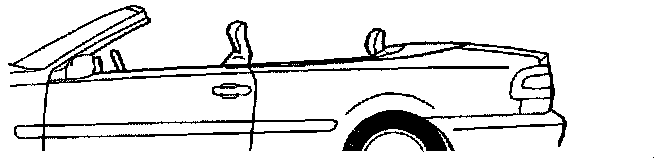

The following conditions are required to operate the hood:
- Speed of less than 4 km/h (2.5 miles/h).
- Close the luggage compartment lid.

- Check if the relay test is done when the ignition is switched on (a rattling noise should be heard from the control unit).
- Ignition on.
- Operate the toggle switch to move the hood.
- Move the hood to its end position.

When hood operates:
- Check that the facia LED on the toggle-switch comes on while hood is operating.
- Check that the side windows move up and down correctly.
- Check that the hood rolls normally and does not sag or catch.
- Check for noise from the hood during operation.
- Check that the facia LED goes off when the hood reaches its end position.
- Check for a warning signal from the buzzer when the hood reaches its end position.

Additional checks:
- Check that the luggage compartment lid does not open (electrically) when hood operates.
- Check that the air-conditioning is switched to manual when the hood is lowered (ECC applies).
- Check that the rear windscreen heater is switched off when the hood is lowered (check using the lamp in combination instrument).

Check that the hood cannot be activated if:
- The luggage compartment lid is open.
- The engine is running.
- The parking brake is not applied.
- The speed is greater than 4 km/h (2.5 miles/h). (Parking brake slightly on.).

Test complete.
