Description of On-Board Diagnostics
>>
Diagnostic Procedure Symbols
Diagnostic Procedure Symbols

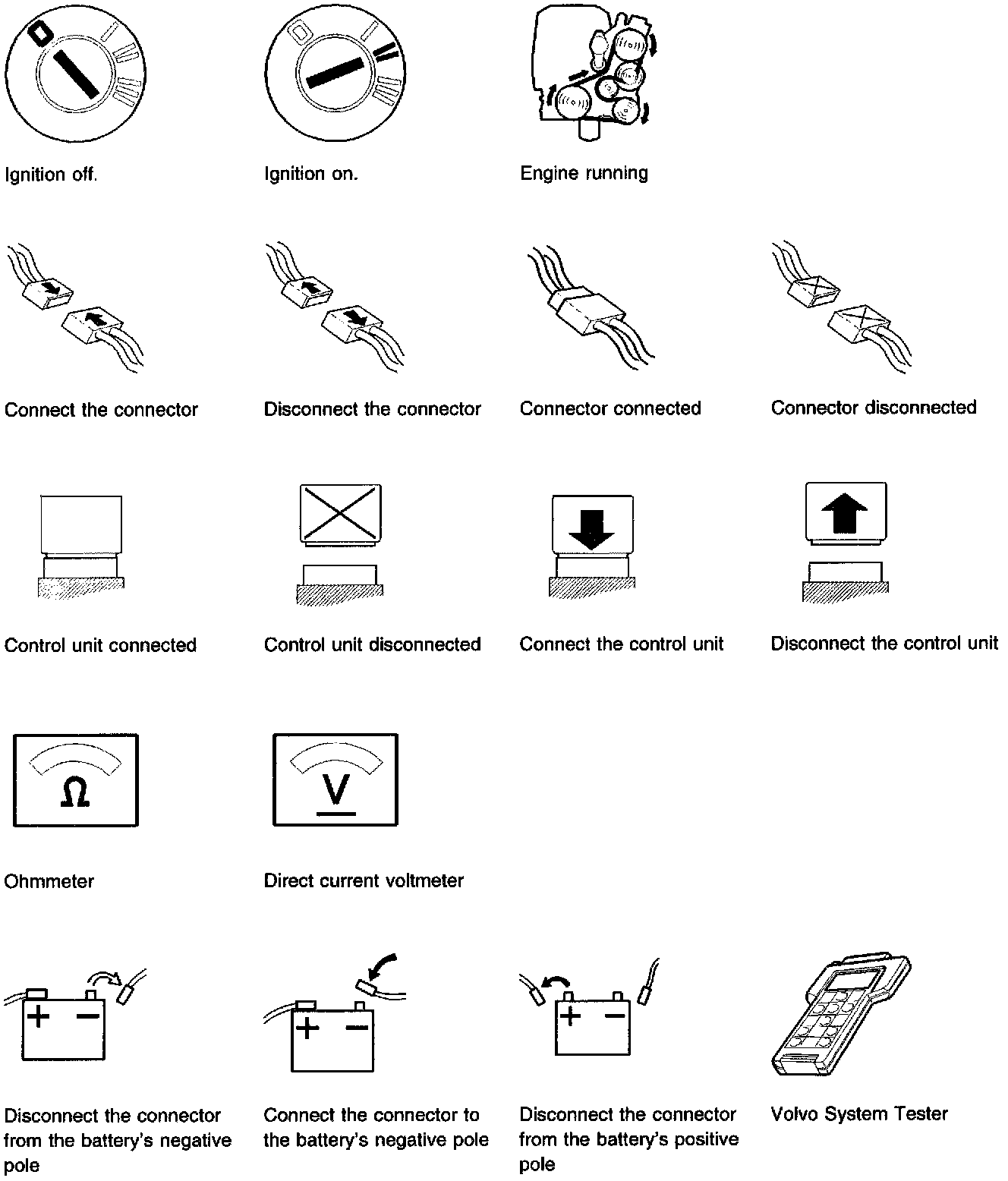

Images and symbols are used at certain points in the trouble-shooting procedures instead of or to supplement the text, to simplify the information and make it easier to read.
