Tension Frame Replacement

Before starting work, see CHA. Preparations Before Work. Procedures

CHR1 Removal:





Move hood to the position shown in the image and turn ignition off.





Remove:
- 17 screws from outer and inner sides of tension frame.

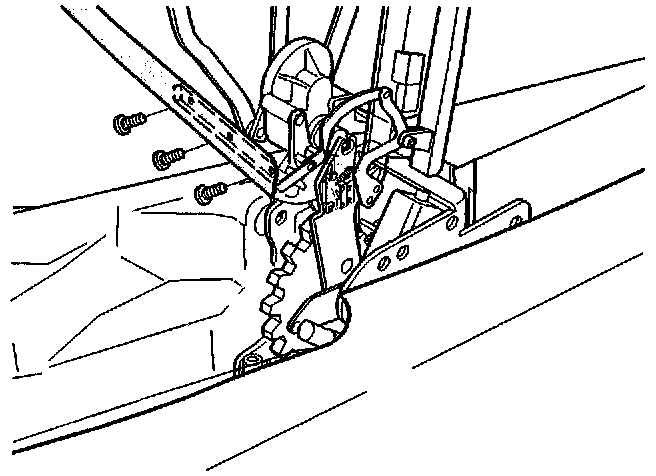

- 3 screws from tension frame attachment, left and right sides.

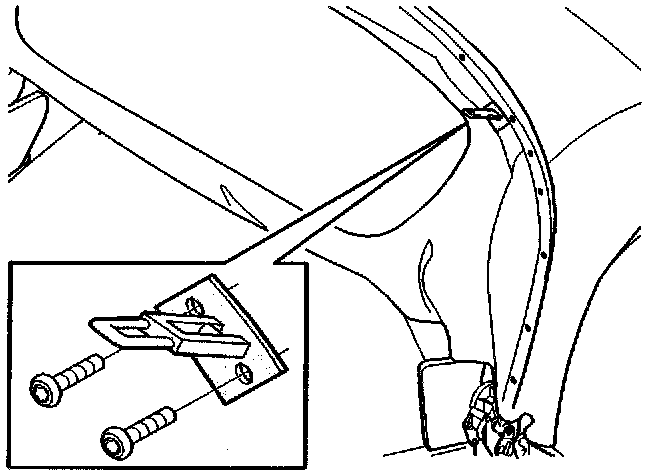

- 2 screws from tension strips, left and right sides.

Pull tension frame backwards.





Remove 2 screws from lock hinges, left and right sides, and remove tension frame.

CHR2 Installation:
Install in reverse order.

Lay paper between tension frame and hood cover, then lower tension frame to closed position. Check seal between tension frame and hood cover.
