Tension Frame Microswitch Replacement

Before starting work, see CHA. Preparations Before Work. Procedures

CHM8 Removal:





- Move hood to the position shown in the image.
- Ignition off.
- Make a note of any radio code.
- Disconnect the battery negative lead.

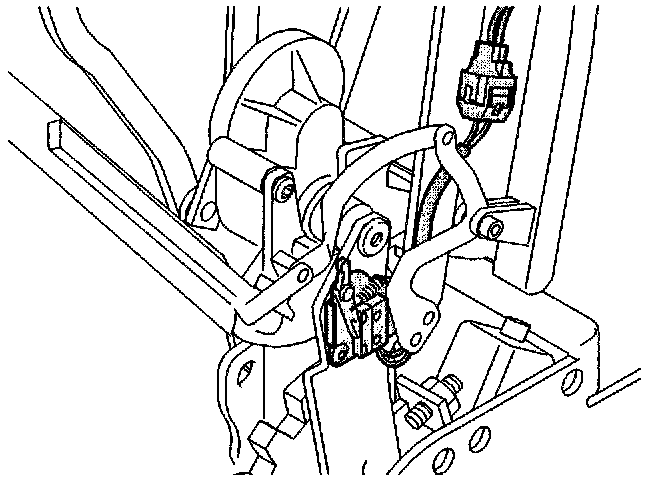

Remove:
- connector from microswitch.
- cable ties from wiring.
- 2 screws from microswitch.

Remove microswitch.

CHM9 Installation:
- Install in reverse order.
- Install new cable ties on wiring.

To adjust microswitch, Adjustments
