End Position Stop, Tension Frame

Before starting work, see CHA. Preparations Before Work. Procedures

CHS1 Removal:

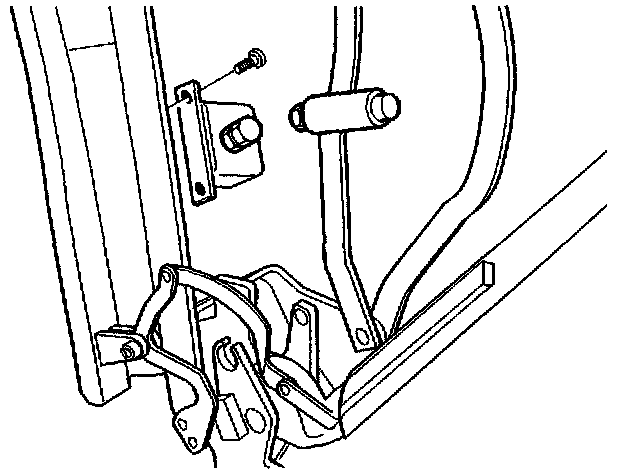

- Move hood to the position shown in the image and turn ignition off.





- Loosen inner fabric side part around C-pillar as described in CHG2.
- Remove 2 screws.
- Remove end position stop.
- Remove 1 nut and end position stop bracket from tension frame.

CHS2 Installation:
Install in reverse order.

For adjustment, Adjustments
