Replacing the Governor For the Tension Bow

Replacing the governor for the tension bow

Note! Before starting work, see Preparations before work Preparations Before Work.

Replacing the governor for the tension bow

Removing the governor, tension bow




Set the convertible top to the position illustrated.
Ignition off.





Remove:
- the textile headlining

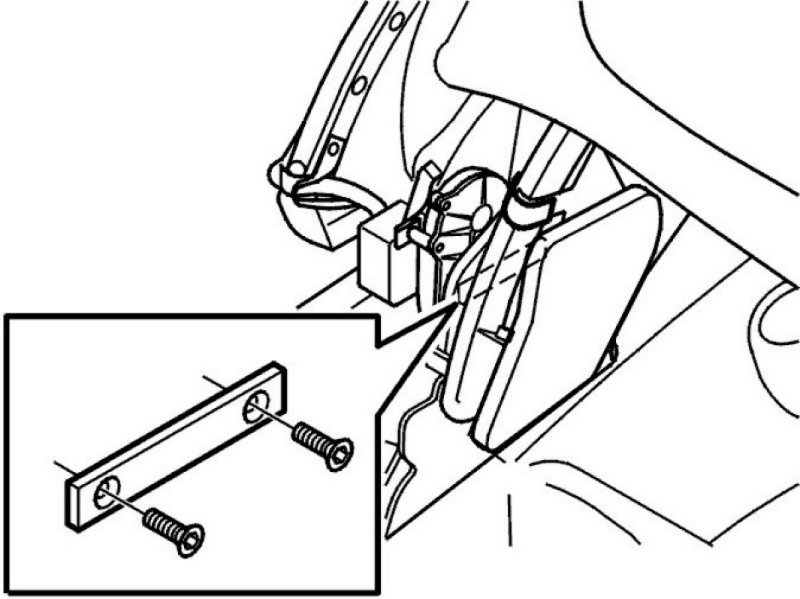

- the 2 screws on the left and right-hand sides
- the governor.
Replace the governor.

Installing the governor for the tension bow
Install in reverse order.
