Outer Hood Cover Replacement

Before starting work, see CHA. Preparations Before Work. Procedures

CHN5 Removal:





Move hood to the position shown in the image.

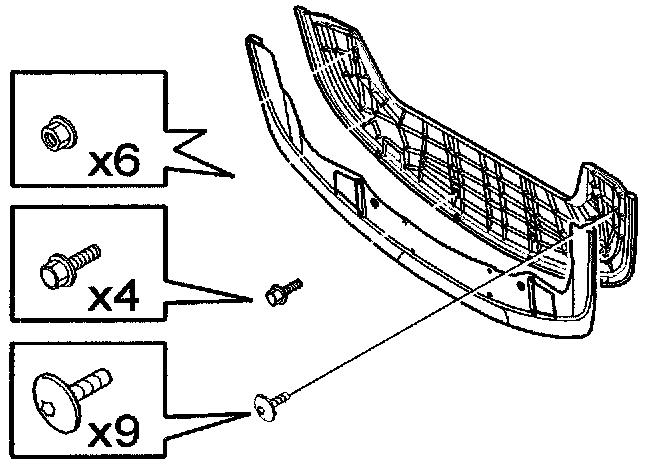

Remove:
- hood cover as described in CHN1-CHN4. Hood Cover Replacement
- 6 nuts to from cover control.
- 4 screws from hinges of outer hood cover 9 screws from outer hood cover.

- Lift hood cover and outer hood cover.
- Remove outer hood cover.

CHN6 Installation of outer hood cover
Install in reverse order. If necessary, Replace Hood Cover Center and Outer Sealing Strips.
