Hood Cover Guide and Link Replacement

REPLACING THE GUIDE, THE LINK FOR THE COVER, SIDE PANEL

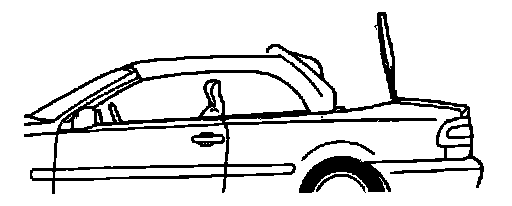

Set the convertible top to the position illustrated.

Ignition off.

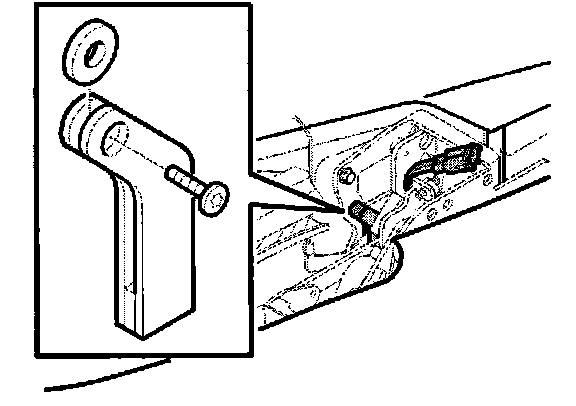

Remove 1 screw for the guide.
Ignition on.

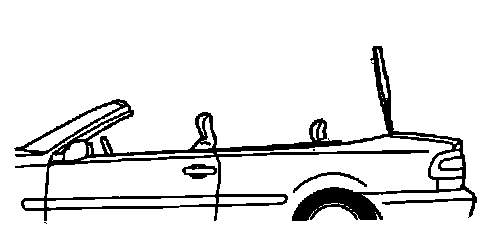

Set the convertible top to the position illustrated.
Ignition off.
Remove the guide and 1 washer.

Installing the guide, the link for the cover, side panel
Install in reverse order.

Set the convertible top to the position illustrated.
Ignition off.
Remove 1 screw for the guide.
Ignition on.
Set the convertible top to the position illustrated.
Ignition off.
Remove the guide and 1 washer.

Installing the guide, the link for the cover, side panel
Install in reverse order.
