Hood Cover Control

Before starting work, see CHA. Preparations Before Work. Procedures

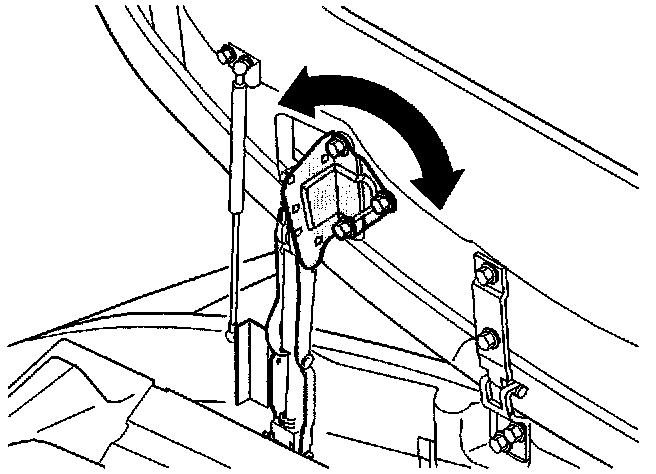

If hood cover moves unevenly while being raised and lowered, adjust hood cover control, as shown in the image.

After adjusting hood cover, check that side clearance between edge of cover control and tension arm support roller is sufficient to prevent contact.

If necessary, adjust rear lock arms, as described in CHB5. Adjustments
