Hood Cover

Before starting work, see CHA. Preparations Before Work. Procedures

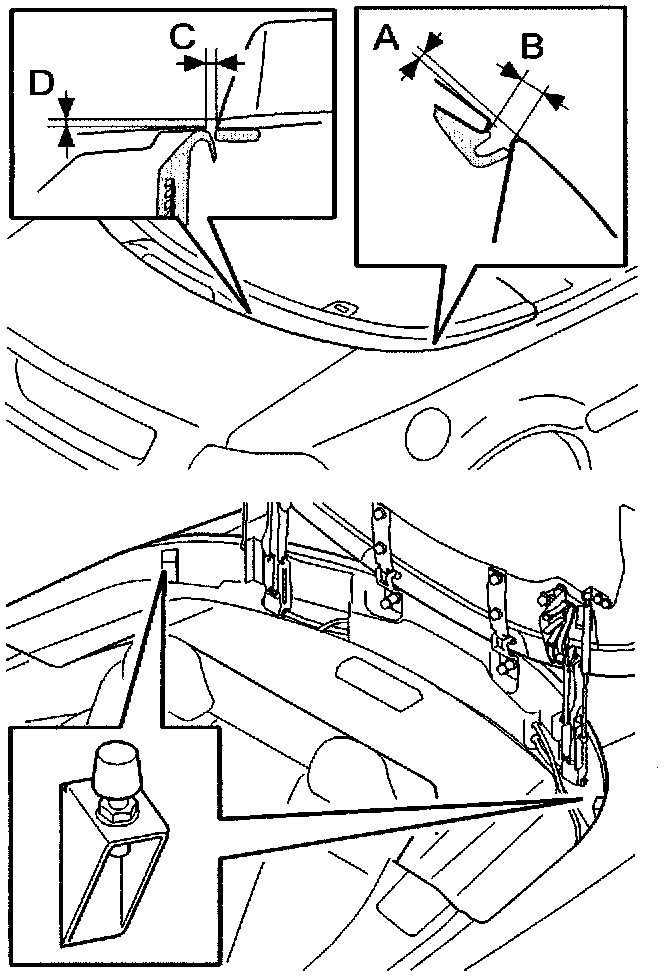

Loosen the hinge screws sufficiently to allow adjustment. Adjust hood cover so that it is parallel with edge of hood storage compartment. Distance (C) between hood cover and luggage compartment lid should be approximately 4 - 6 mm (0.16- 0.24"), and height (D) should be 0 - 2 mm (0 -0.08"). The distance between the hood cover and body should be 4 - 6 mm (0.16-0.24"), and height (A) should be 0-2 mm (0 - 0.08").

Tighten hinge screws to 25 Nm (18.4 if-lb).

Adjust the Z-support so that the hood cover forms a straight vertical line against the edge of the hood storage compartment.

If necessary, adjust rear lock arms, as described in CHB5. Adjustments
