Cover Striker Plate Adjustment

ADJUSTING THE STRIKER PLATE FOR THE COVER
Set the striker plate to the bottom position.
Close and lock the cover.

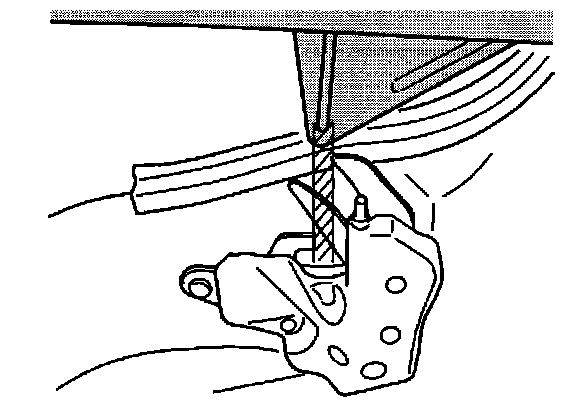

The mounting bracket must be positioned so that its three holes are aligned with the holes in the striker plate.
If the cover requires adjustment, see Replacing adjusting and emergency opening of the cover. Service and Repair Adjustments
Tighten the nuts. Tighten to 25 Nm.

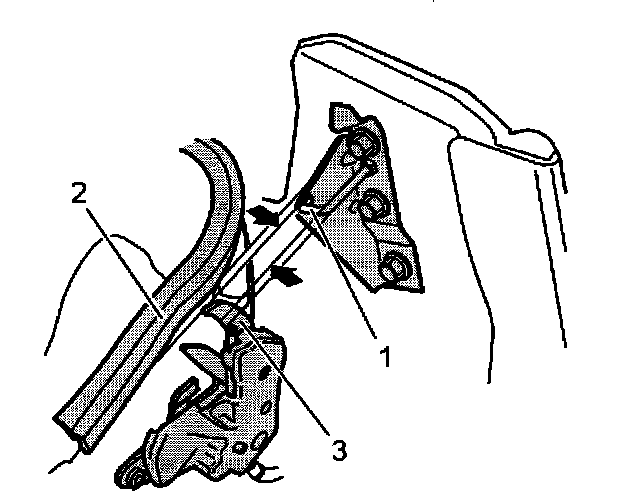

Align the lock and locking bracket as illustrated. The contact point must be in area 1, the striker plate must not be in contact with area 2 or 3.
