Cover Lock Micro-Switch

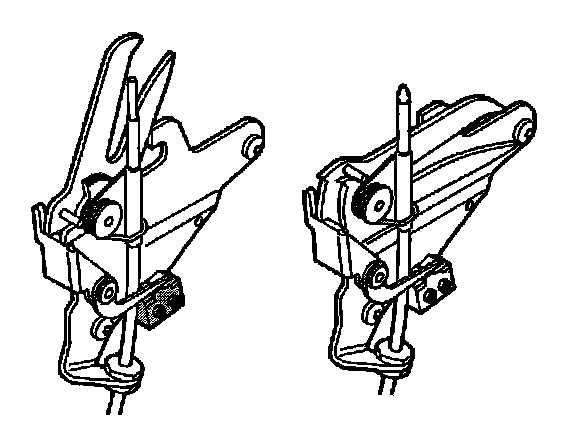

ADJUSTING THE MICRO-SWITCHES FOR THE COVER LOCK






When the lock is closed the micro-switch must close.

Note: The right and left sides must close at the same time.

Hint: The indicator arm may be bent.

Hint: Verified by mechanical operation.
