Edge Wire (Cable)

Before starting work, see CHA. Preparations Before Work. Procedures





CHF7 Removal:
Move hood to the position shown in the image.





- If attachment or edge wire is damaged, replace edge wire.
- Fold up outer fabric at front lock arm, or remove outer fabric as described in CHG6 and CHG7.

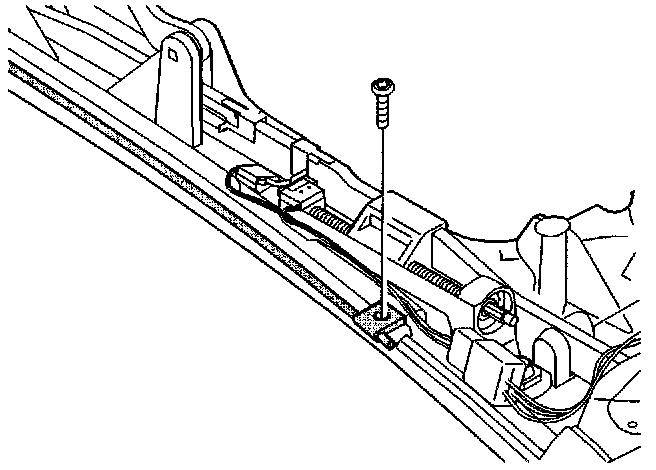

- Remove 1 screw from edge wire attachment.





Remove:
- 1 screw from edge wire attachment.

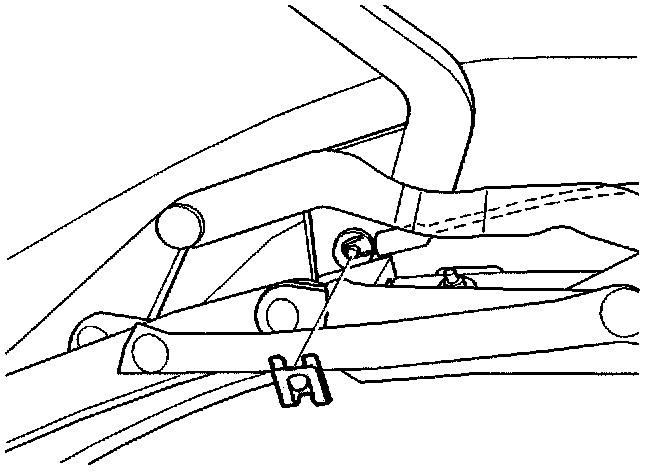

- 1 clip from edge wire attachment.
- edge wire.

CHF8 Installation:
- Feed a new edge wire through channel in fabric.
- Install in reverse order.
- Install outer fabric as described in CHG12 and CHG13.
