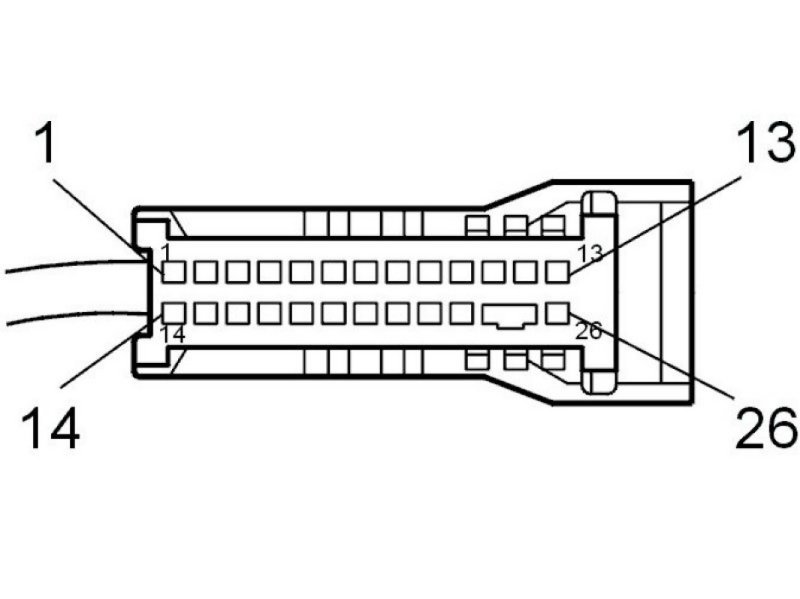

Pinout Values and Diagnostic Parameters

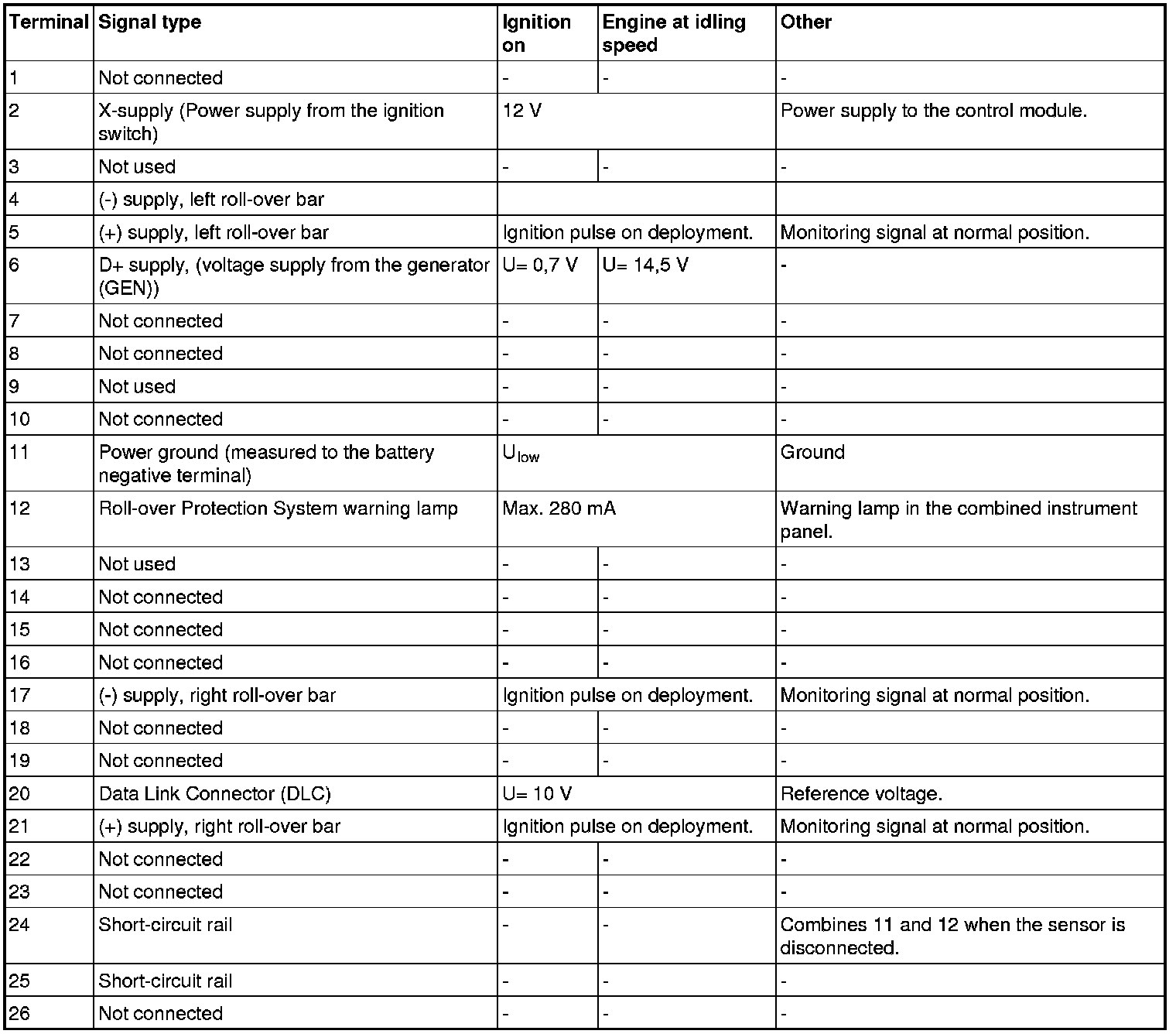

ROPS signal specification





General

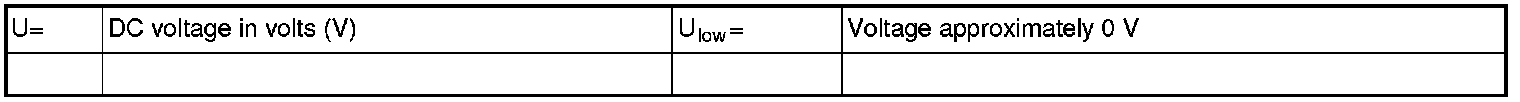

All values given below are between the respective terminal in column 1 and terminal 11 (power ground) unless otherwise stated in brackets after the table entry.
Also see the SRS wiring diagram for the relevant model year.
