Roll Bar Cover: Service and Repair

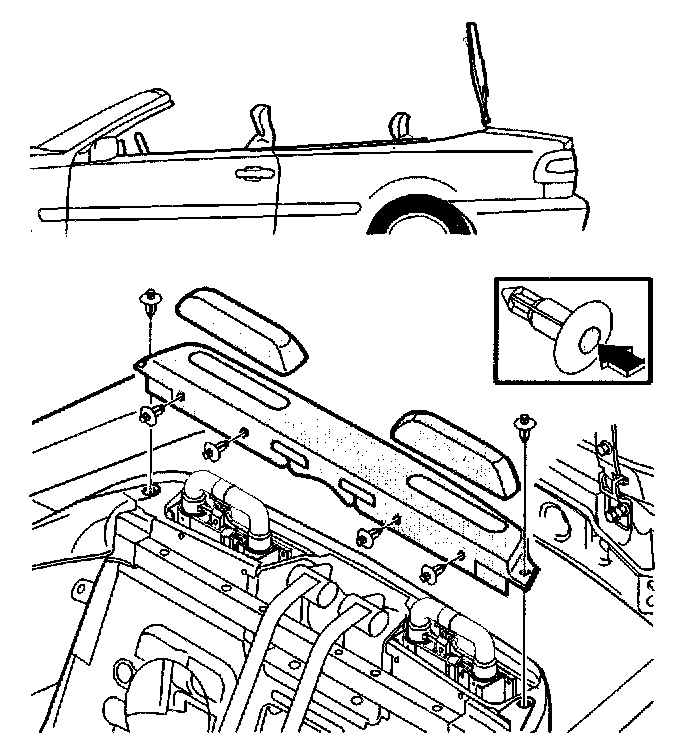

ADD1. Roll Bar Panel
Move the hood to the position shown on the figure.


Remove:
The rear seat, refer to Rear seat
The roll bar panel
4 clips from the front edge
1 clip from each side.


NOTE: The panel is also held at the rear edge by 2 clips, these two clips are attached to the panel and therefore cannot be removed until the panel has been removed.


Carefully pull up the panel.


CAUTION! If the clips fall apart replace them with new ones.

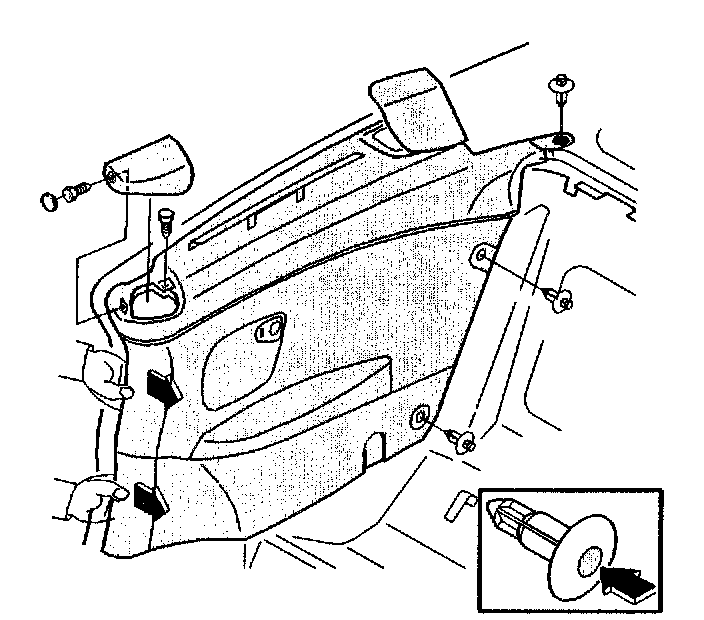

ADC1. Rear Side Panel







Remove:
The rear seat,
The seatbelt link, refer to rear seat
The roll bar panel, refer to Roll Bar/ROPS
1 screw from the front section of the side panel
The front seatbelt from the slide bar.
the cover from the hinge on the side panel.


NOTE! The panel is also held at the rear edge by 2 clips. These two clips are attached to the panel and cannot therefore be removed before the panel has been removed.


CAUTION! If the clips fall apart replace them with new ones. Lift the panel up and out. The panel is held on the inside by 4 clips.
