Plastic Components Spraying






Plastic components spraying

Clean and degrease the surface
Heat the plastic before clean.
Clean the surface with cleaning agent according to instructions from relevant suppliers.

Sand surface




Sand the surface with P 600 sandpaper.

Blow clean surface
Blow clean and clean the surface with cleaning agent

Prime




Prime unpainted and surfaces sanded bare with adhesive primer.
Coat thickness 5-10 micron (one spray stroke).
For specific paint data see.

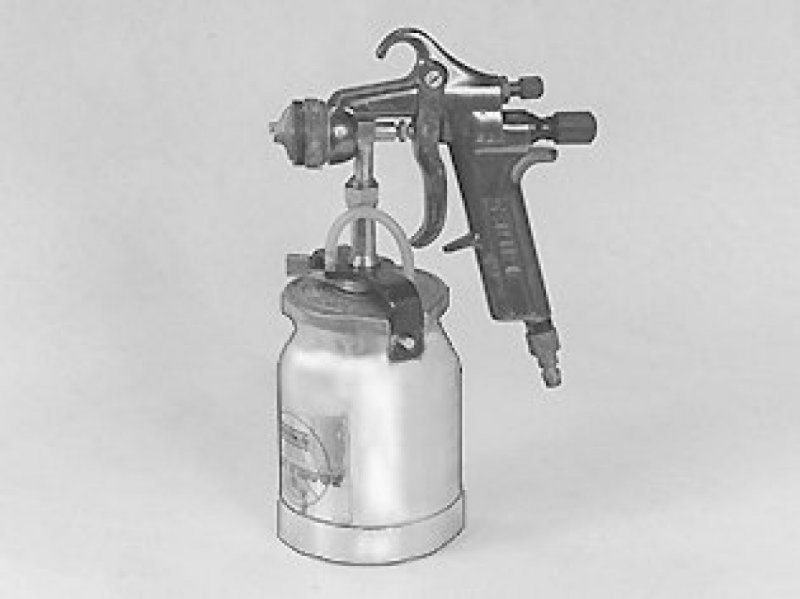

Apply the color coat

Solid color
Mix the solid paint according to specifications.
Spray according to instruction for painting with solid color see Color coat Color Coat.

Metallic
Spray base metallic paint according to instructions for painting with metallic paint see Color coat Color Coat.
Use two part varnish according to specifications.
Spray base metallic paint according to instructions for painting with metallic paint.
