Electric Motor


ELECTRIC MOTOR






Remove:
- Mirror glass. See Door Mirror Glass.

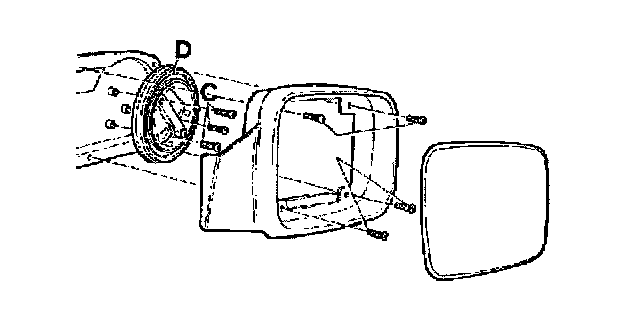

- 3 mounting screws (C) for the electric motor/swivel assembly.
- Connector.
- Electric motor.
