Power Door Mirrors

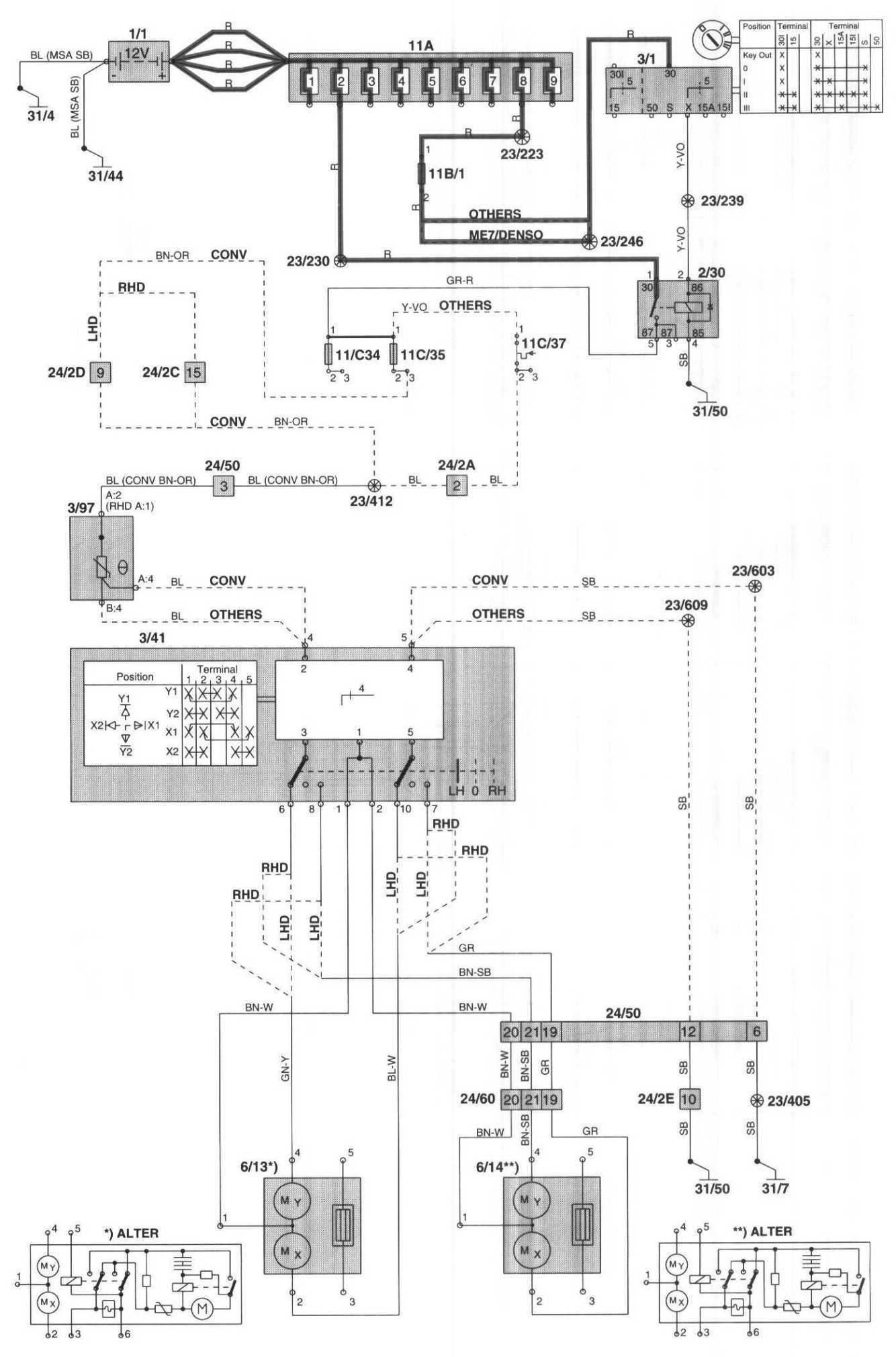

Power Door Mirors - Wiring Diagram:

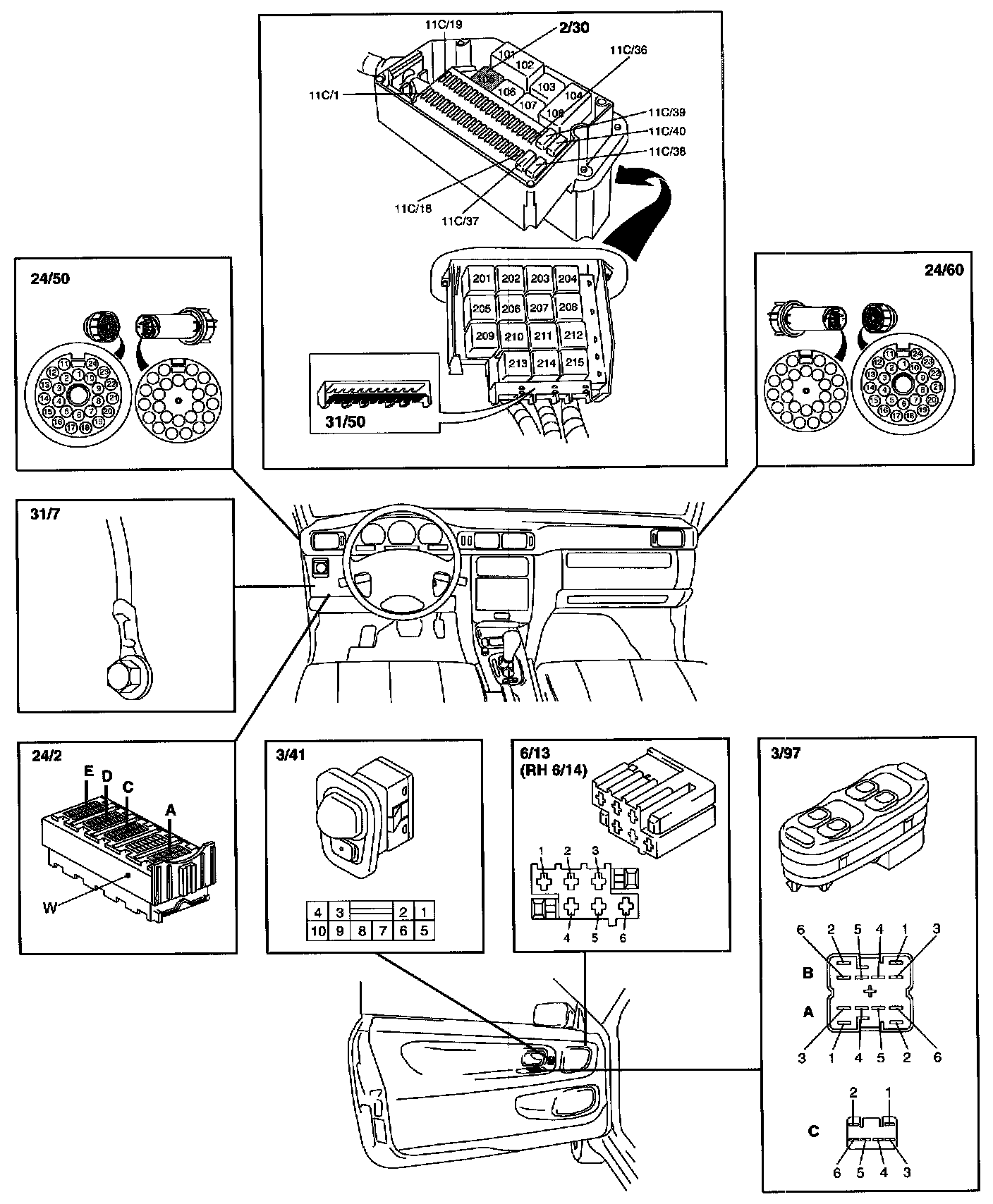

Power Door Mirrors - Component Location:

To identify components from the numeric designation, see "Component I.D List (Name and Numeric Designation)". Diagram Information and Instructions
