XX. Signal Specifications
XX. Signal Specifications
U
= DC in Volts (V)
Ubat
= battery voltage
Ulow
= voltage close to 0 V to 0 V

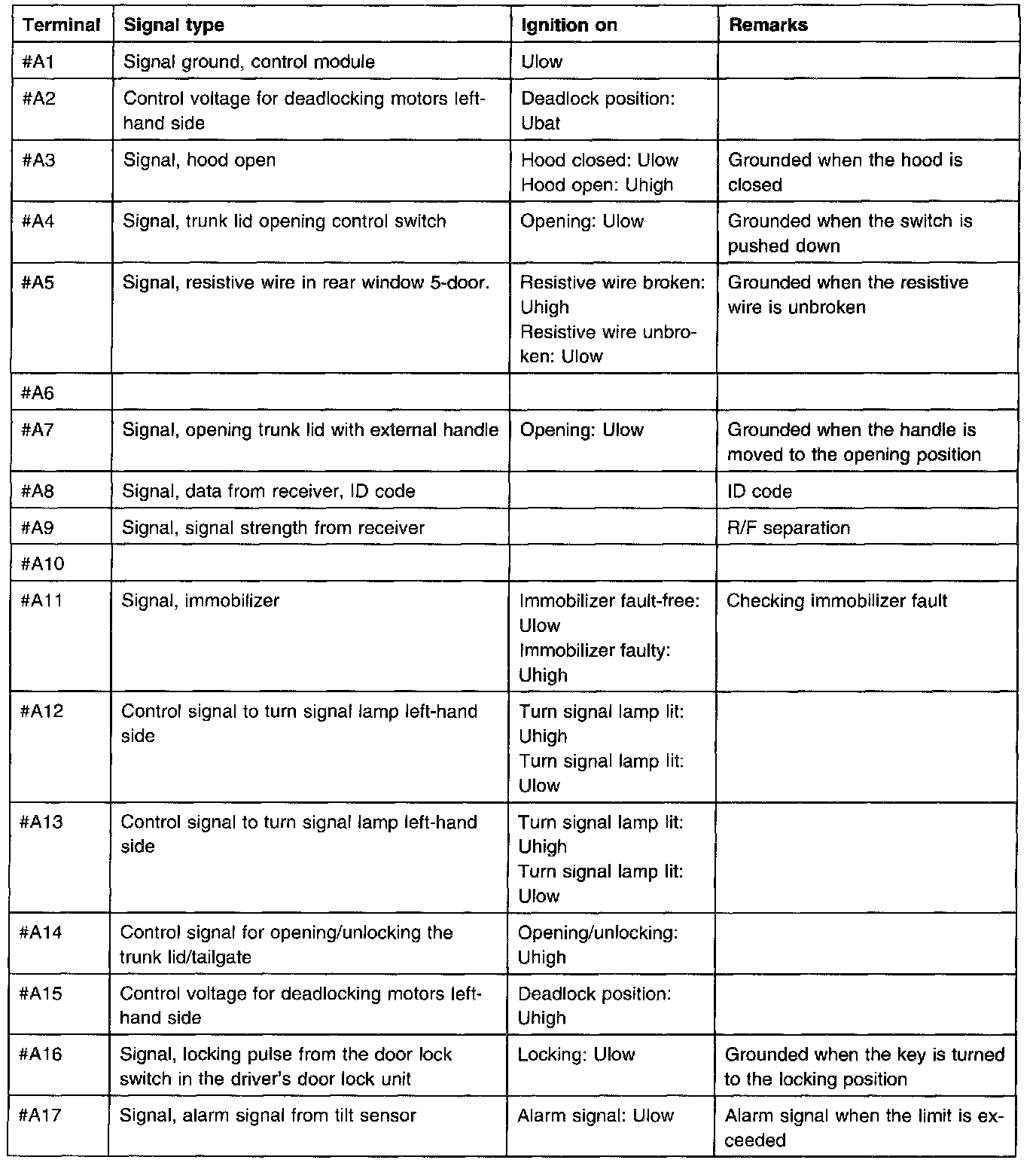

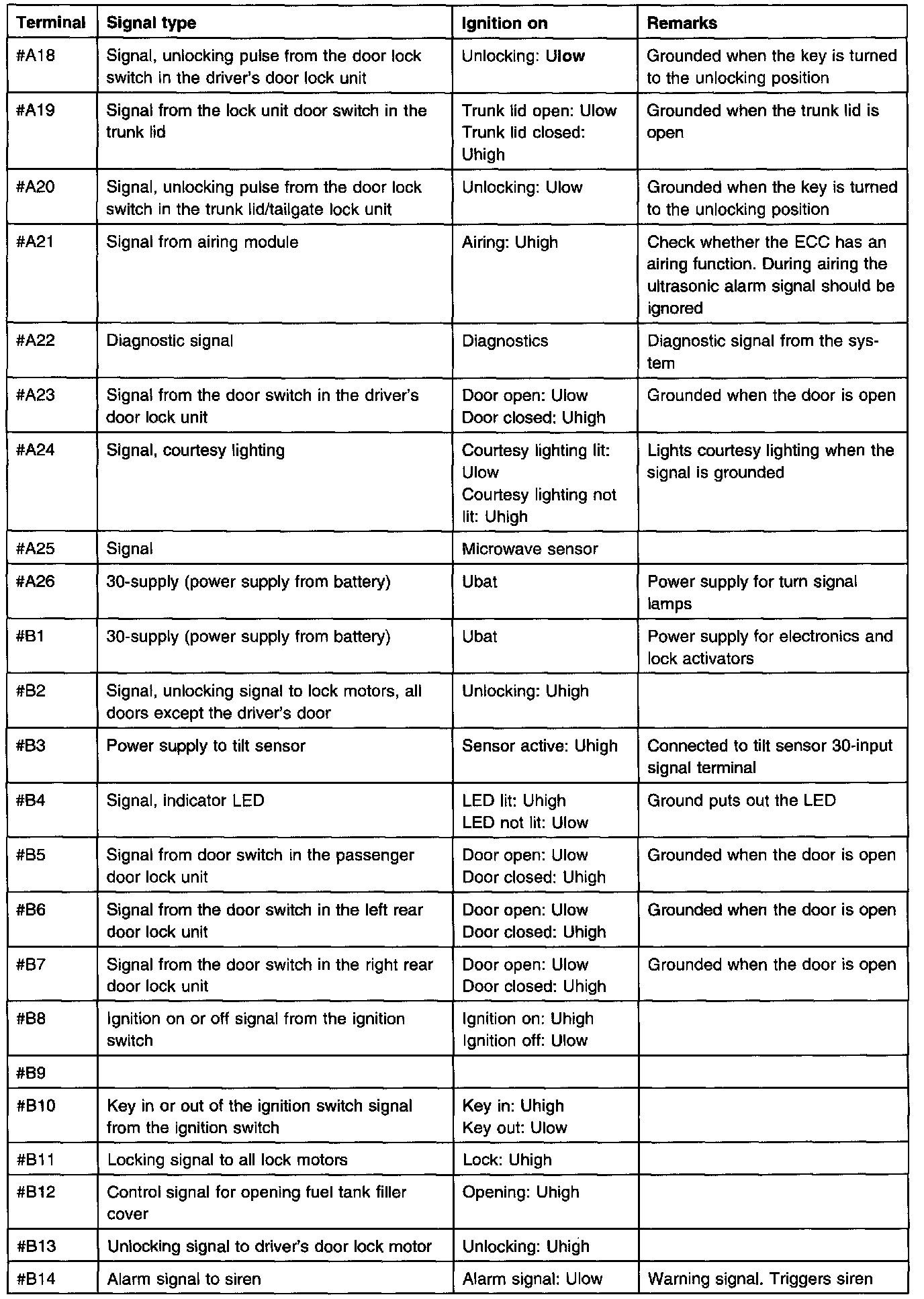

VGLA SIGNALS:
VGLA SIGNALS:

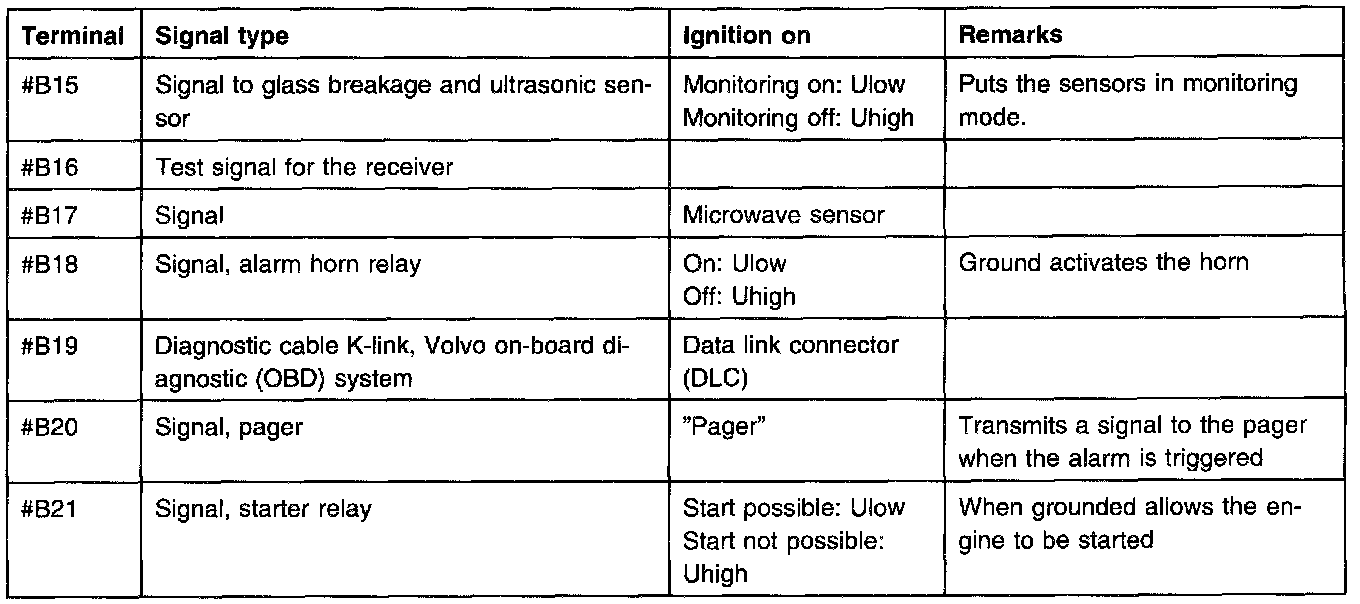

VGLA SIGNALS "B" CHART:
