Home >> Volvo >> 2000 >> C70 Convertible L5-2.3L Turbo VIN 53 B5234T3 >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Table Of Symptoms

Table Of Symptoms





Table of symptoms

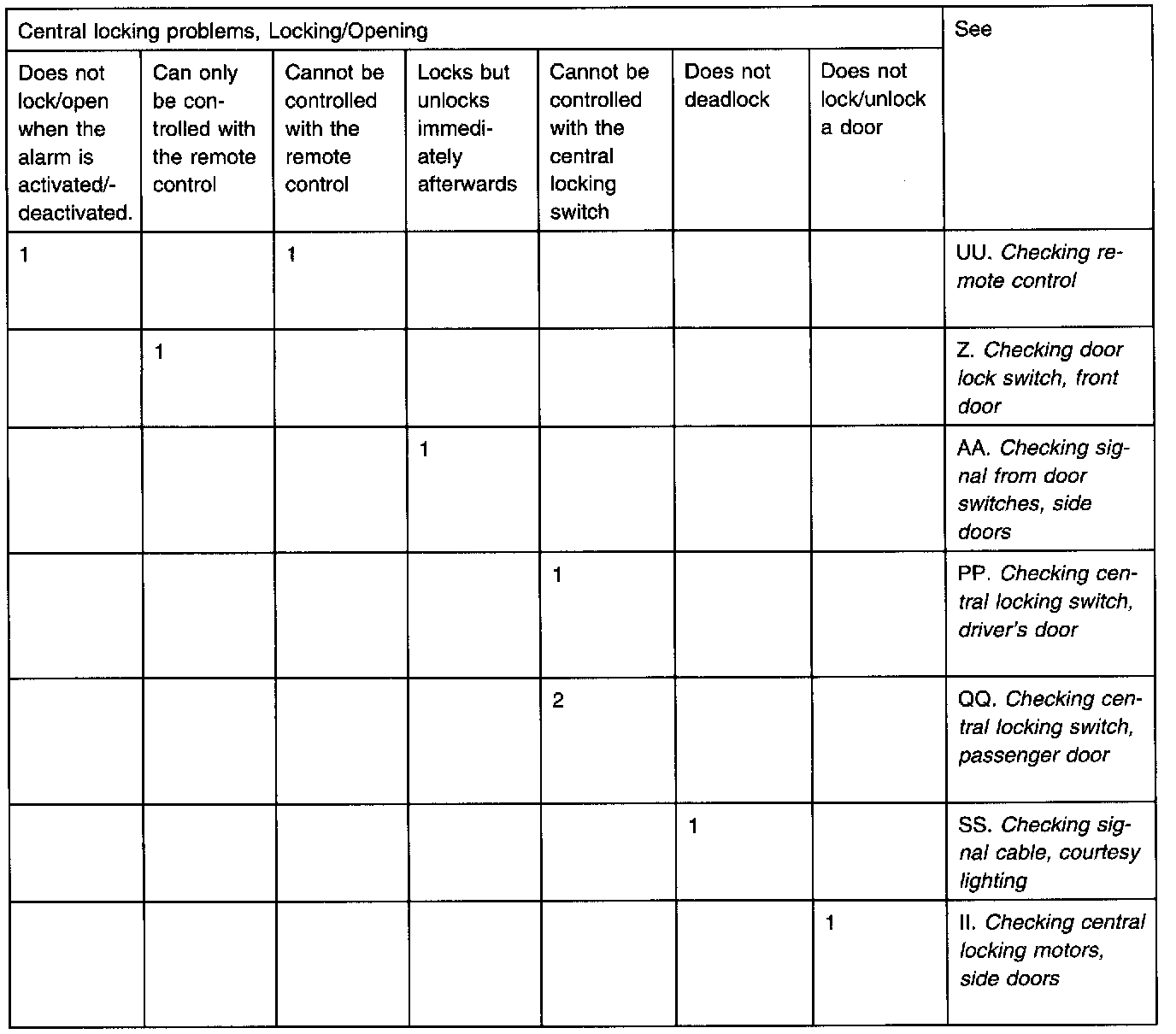

WA. Fault Table:

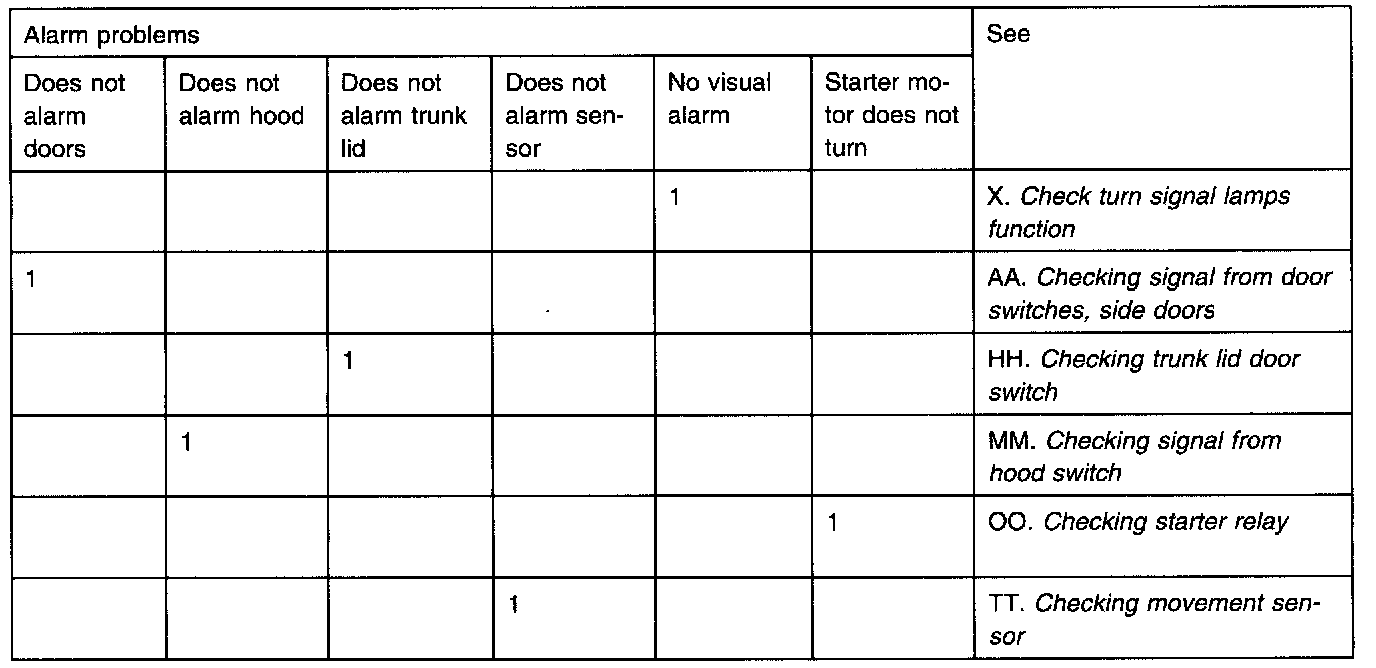

WB. Fault Table:

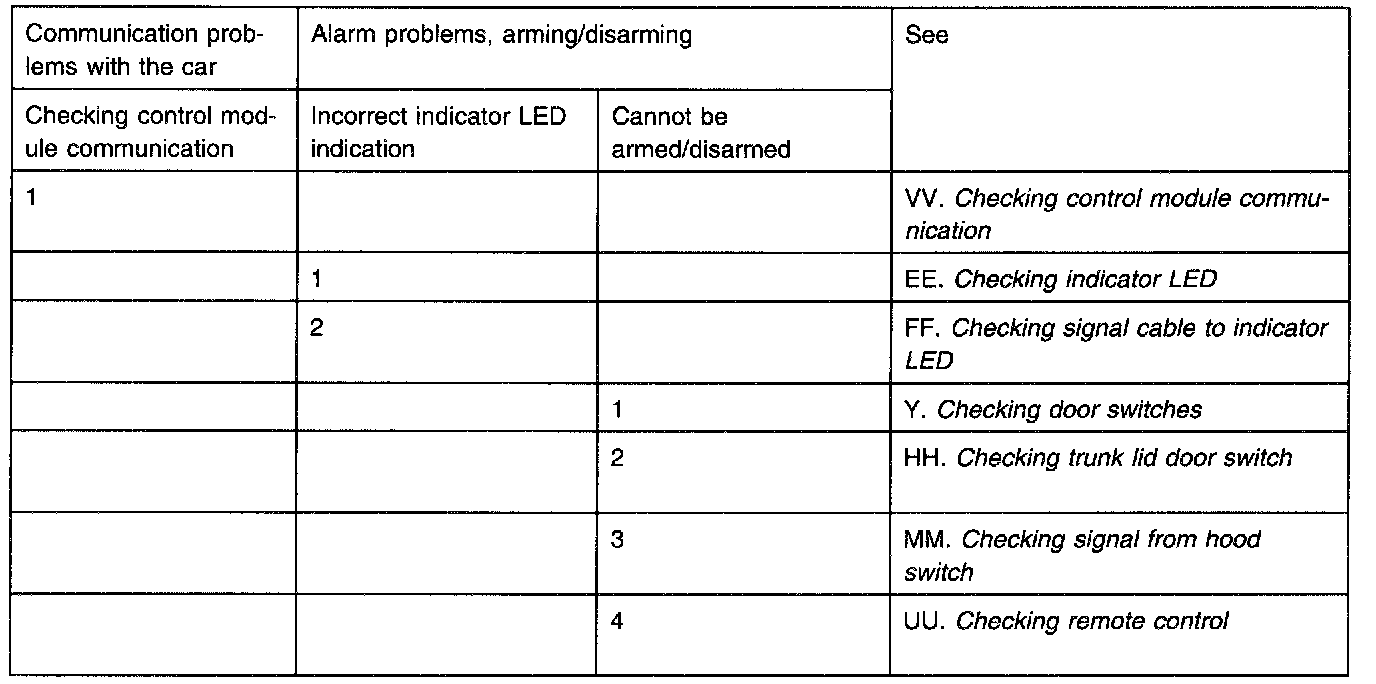

Wc. Fault Table:

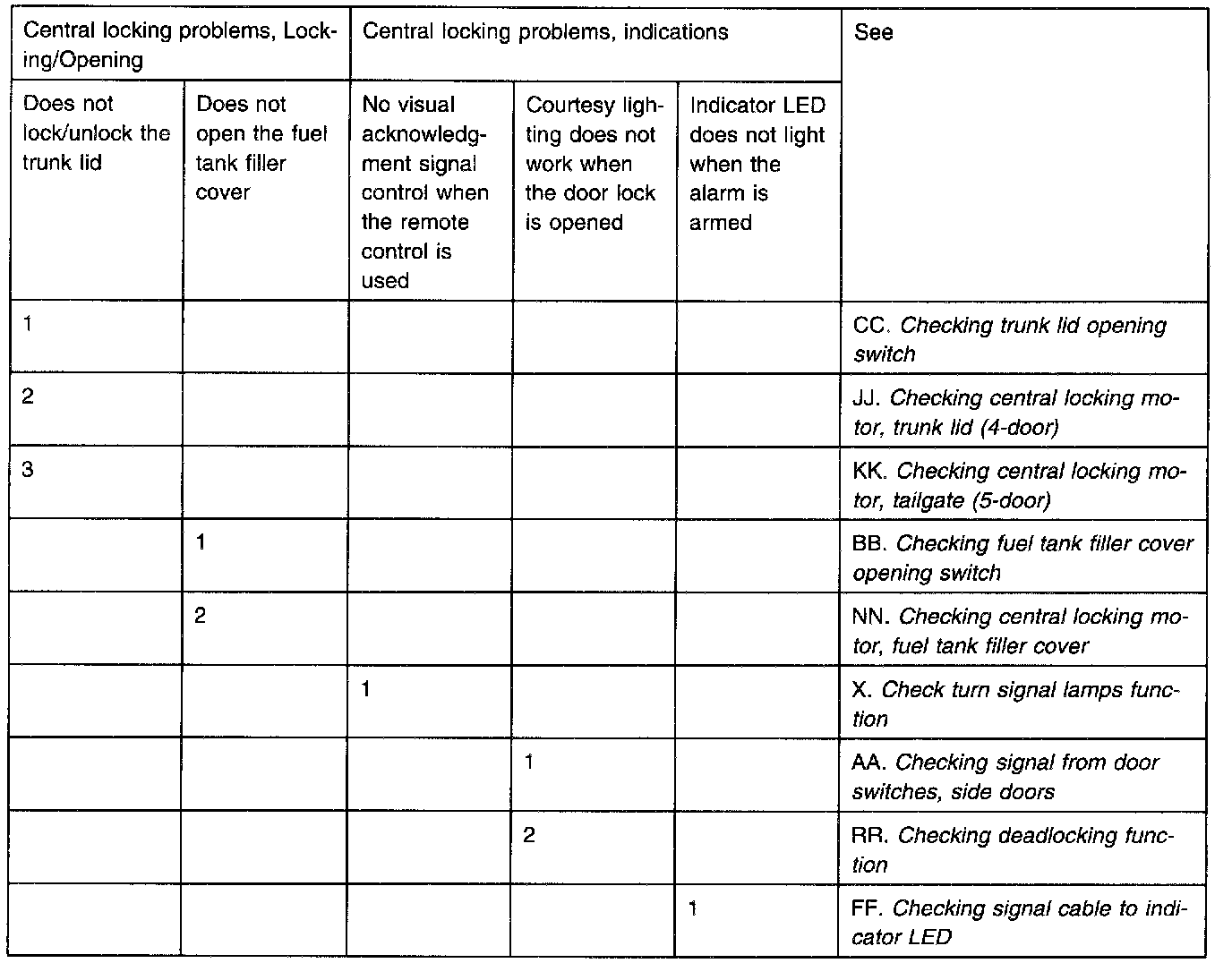

WD. Fault Table:
