Procedures

Lock cylinder






Remove handle from door.

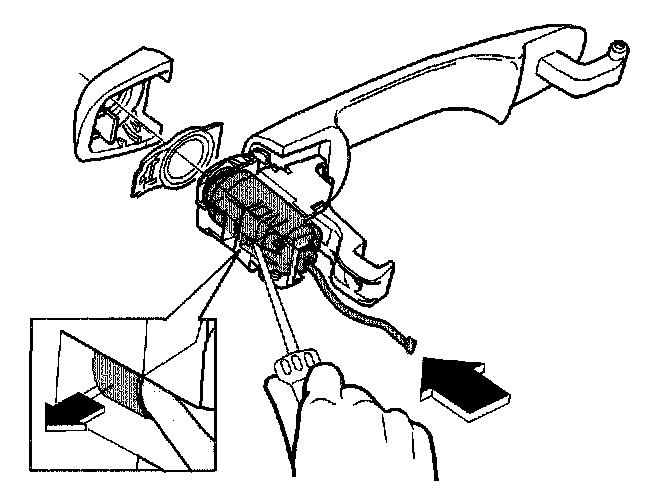

Lift the lock facing.
Push out lock cylinder from the back. The key is not required to do this.


CAUTION! When installing it the key should not be in the lock. If the key is in the lock the lock cylinder may be installed in the wrong position.
