Headlining

Headlining

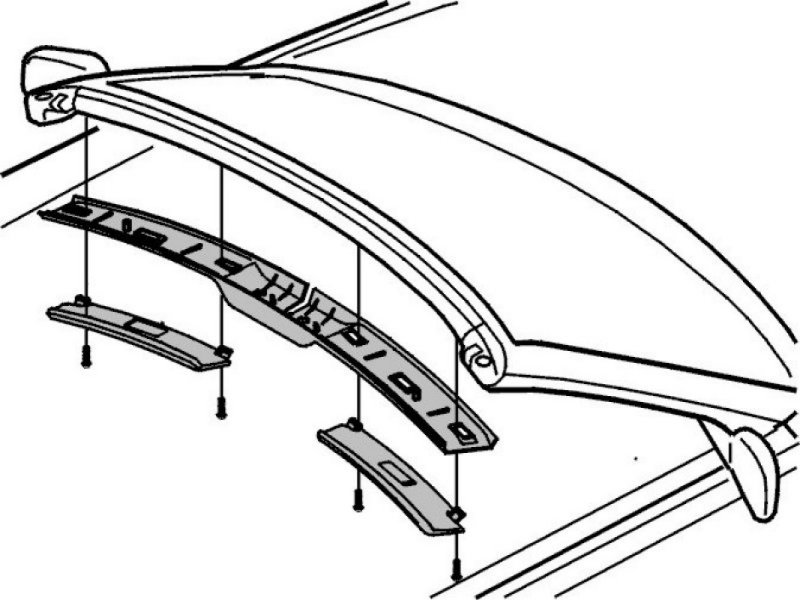

The upper panel for the windshield frame





Remove:
- lamp lens Vanity mirror lighting Convertible, replacement Removal and Replacement.
- sun visors, see Sun visor.
Pull the panel down and disconnect the connectors.

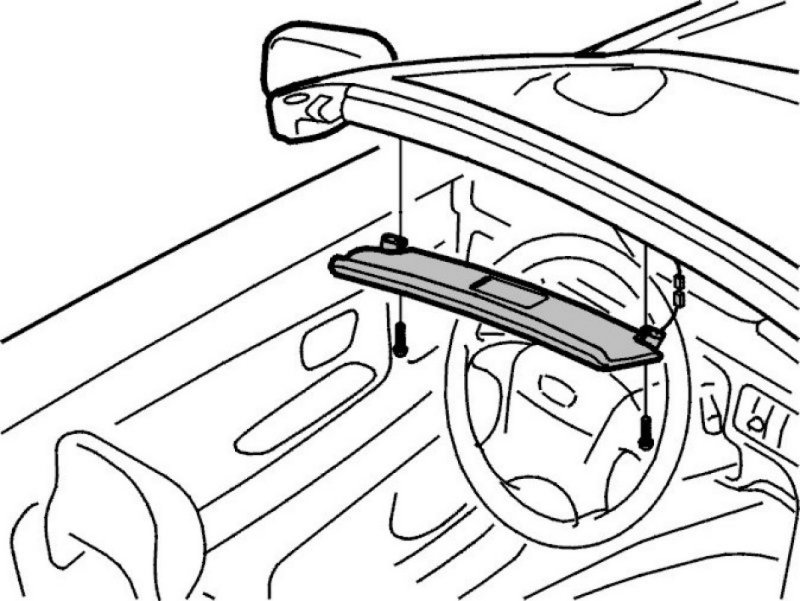

Sun visor





Remove:
- 2 screws for the sun visor.
- 1 connector.

Door mirror





Remove:
- lamp lens Vanity mirror lighting Convertible, replacement Removal and Replacement.
- sun visors, see Sun visor.
- the upper panel for the windshield frame, see The upper panel for the windshield frame.
- 2 screws.
