Glove Compartment Lock Cylinder: Service and Repair

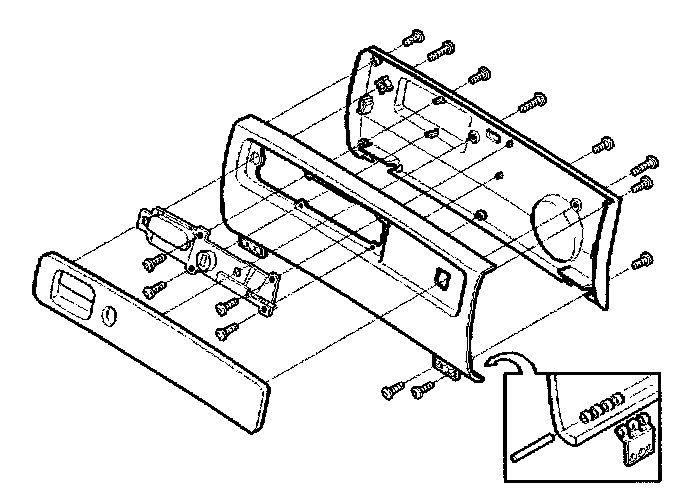

AFA1. Disassembling and Assembling:





Back, 8 Torx 20
Lock unit, 4 Torx 10
2 hinge pins

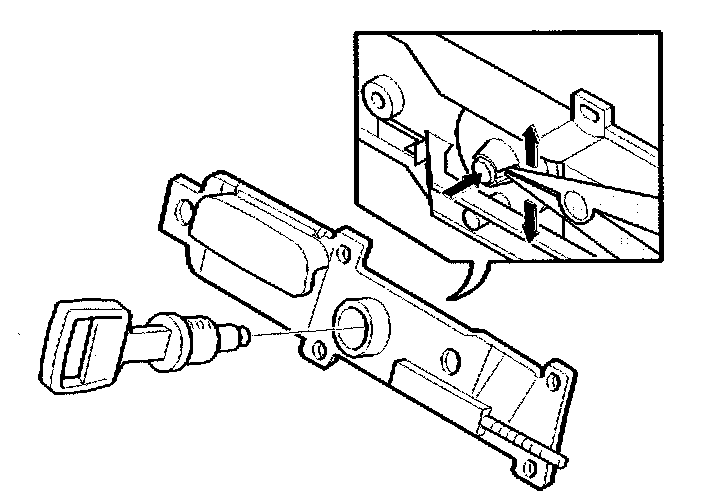

AFA2. Replacing Lock Cylinder





Open the lock lug using circlip ring pliers.
Press out lock cylinder.

NOTE: The key must be in the lock.
