Body Emblem: Service and Repair

Badge

Badge





Remove:
- Heat the badge cautiously. Use a hot-air gun.
- Carefully lift up the edge of the badge.

Note! The car should be at room temperature when installing the badge.

Install:
- wash the mating surface on the bodywork thoroughly. Use protective gloves and a soft cloth soaked with " Cleaner H".

Note! Avoid skin contact with " Cleaner H".

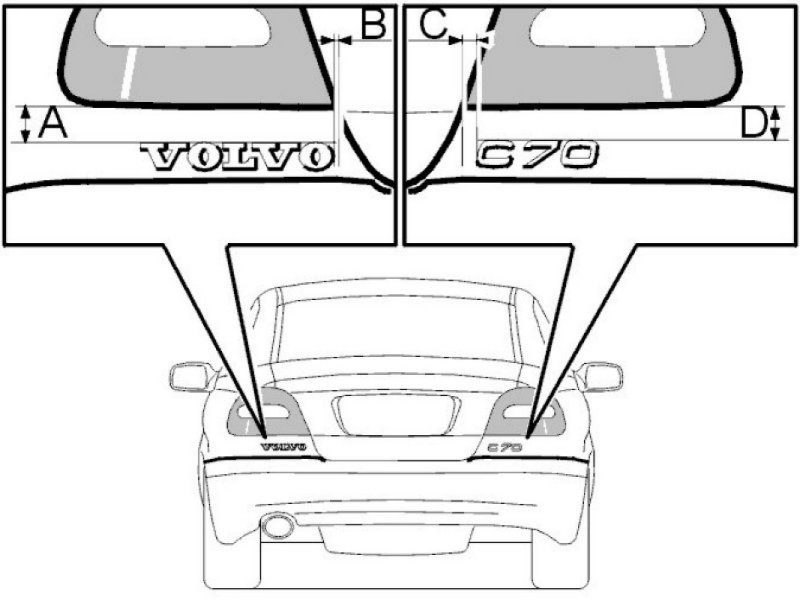

- measure and mark up the badge positioning according to the dimensions in the illustration alongside.

Hint: Use a magnet to position the badges.

- remove the backing from the adhesive area of the badge.
- press the badge onto the body.
- check the edge of the badge all the way round and adjust it so that the whole adhesive area bonds onto the car body.
