Checking For A Short-Circuit

Checking For A Short-circuit







Check:

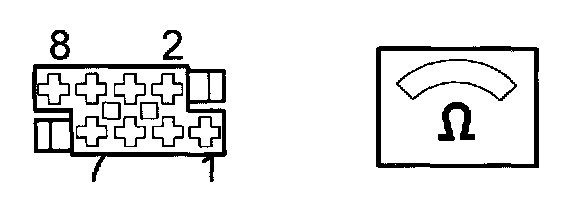

On left-hand drive cars the cable between VGLA control module #A23 and the lock unit black connector terminal 4 for a short-circuit to ground according to Checking wiring and terminals - Permanent faults. On right-hand drive cars the cable between VGLA control module #A23 and the lock unit black connector terminal 1 for a short-circuit to ground, Checking Wiring and Terminals - Permanent Faults

After performing this procedure Verification
