Checking Turn Signal Lamp Function - II

Checking Turn Signal Lamp Function

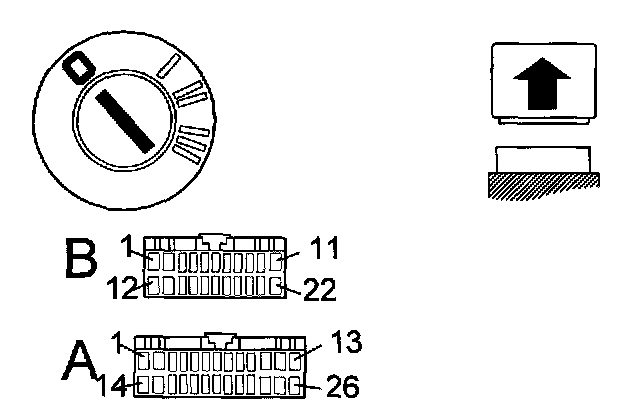

- Ignition off.
- Disconnect VGLA control module.

Bridge control module connector terminals A12 and A26.
The left turn signal lamp should light.
Bridge control module connector terminals A13 and A26. The right turn signal lamp should light.

Is the function OK?

Yes - Replacing Component

No - Checking Cables
