Replacing the TMC (FM) Receiver

Replacing TMC receiver


Removing TMC receiver
- Ignition off.

Remove:

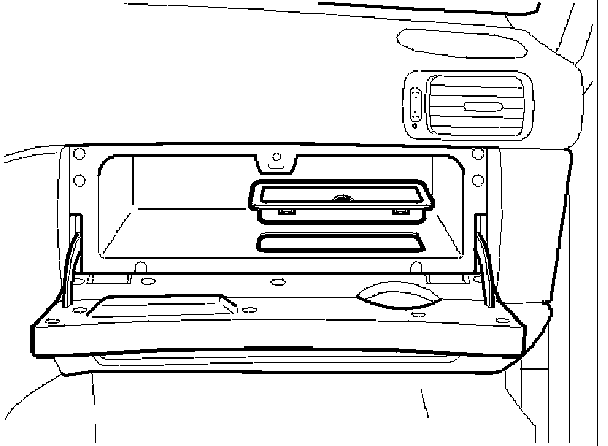

- cover for CD-ROM player in glove compartment
- the glove compartment.
- the soundproofing panel on the passenger side.

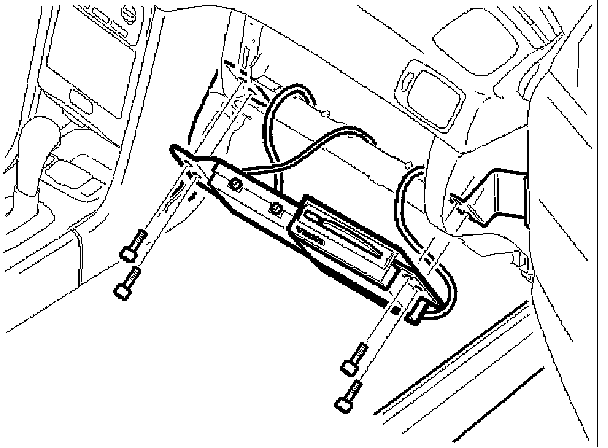

- the bracket with the TMC receiver and the CD-ROM player.

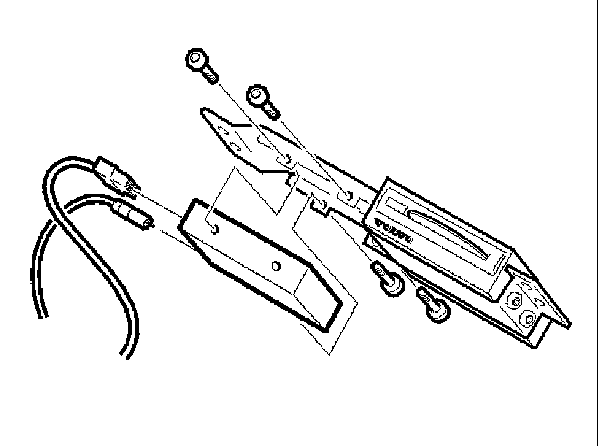

- disconnect the connectors
- the TMC receiver from the bracket.

Installing TMC receiver
- In reverse order.

Finishing
- Check that the system appears to be working normally
- Check that no diagnostic trouble codes (DTCs) have been stored during the repair.
