Signal Specification Road Traffic Information (RTI), New System

Signal specification Road Traffic Information (RTI), new system

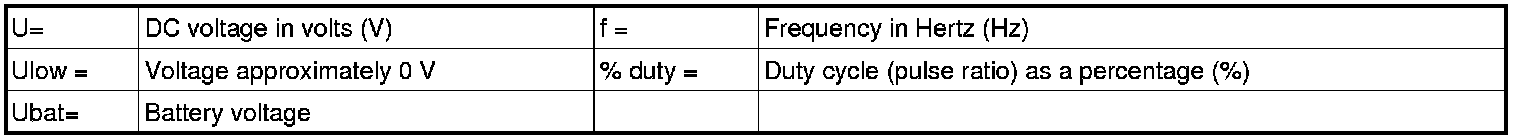

All the values given in the tables below are between the terminal stated in column 1 and ground. This applies unless otherwise indicated in brackets.

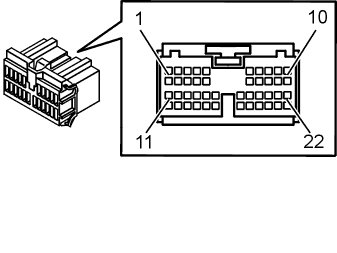

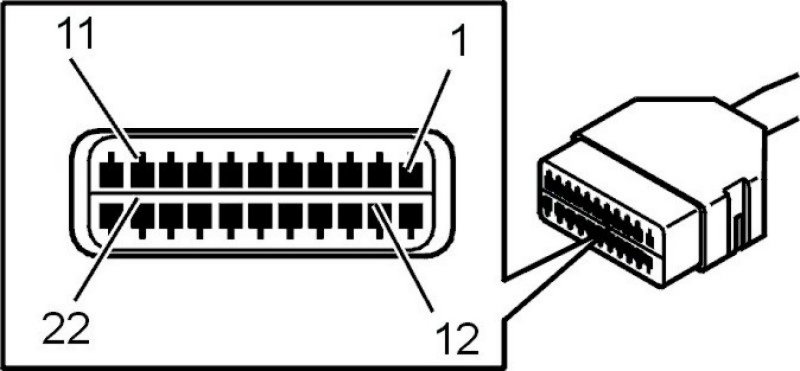

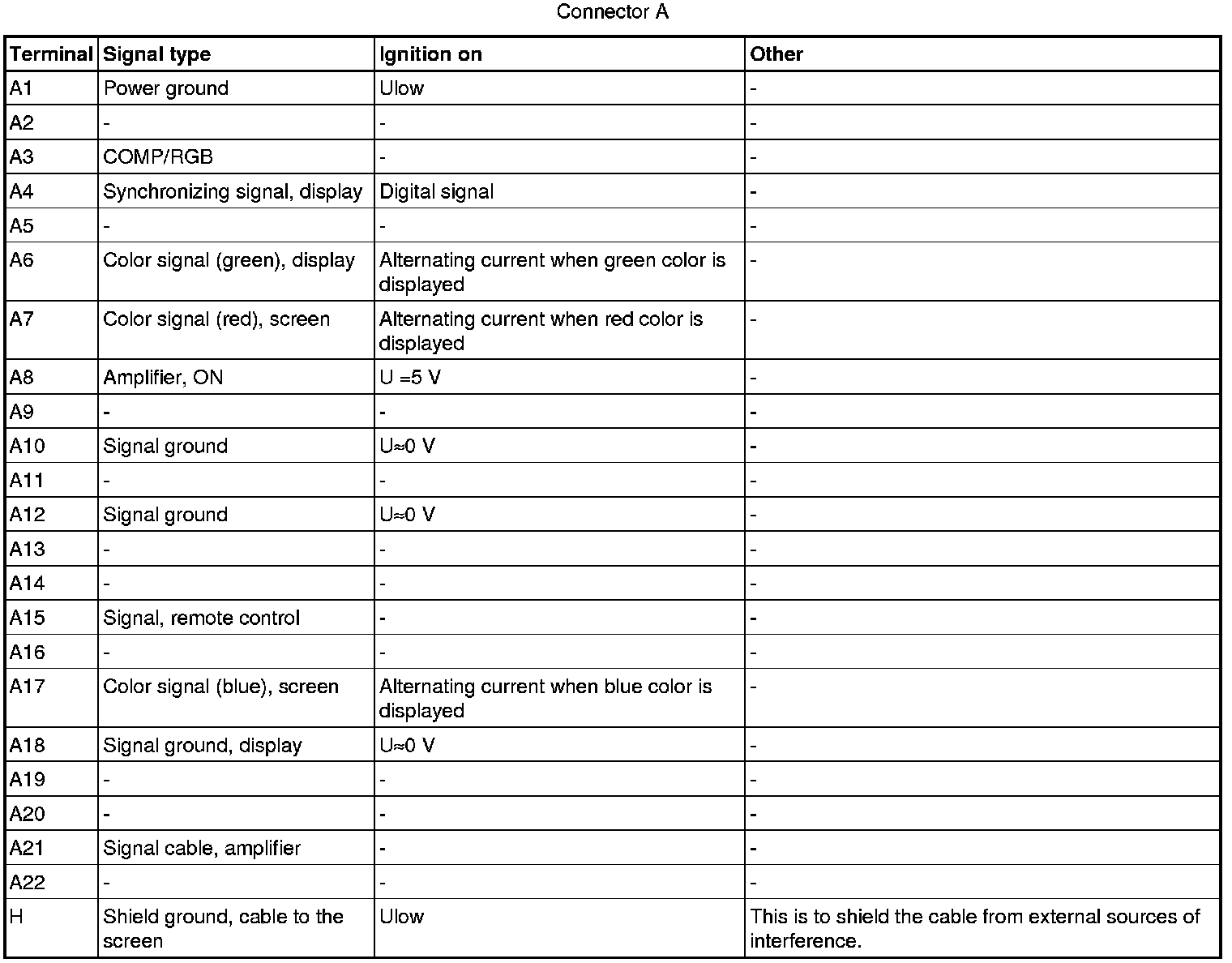

Connector A is on the RTI control module.

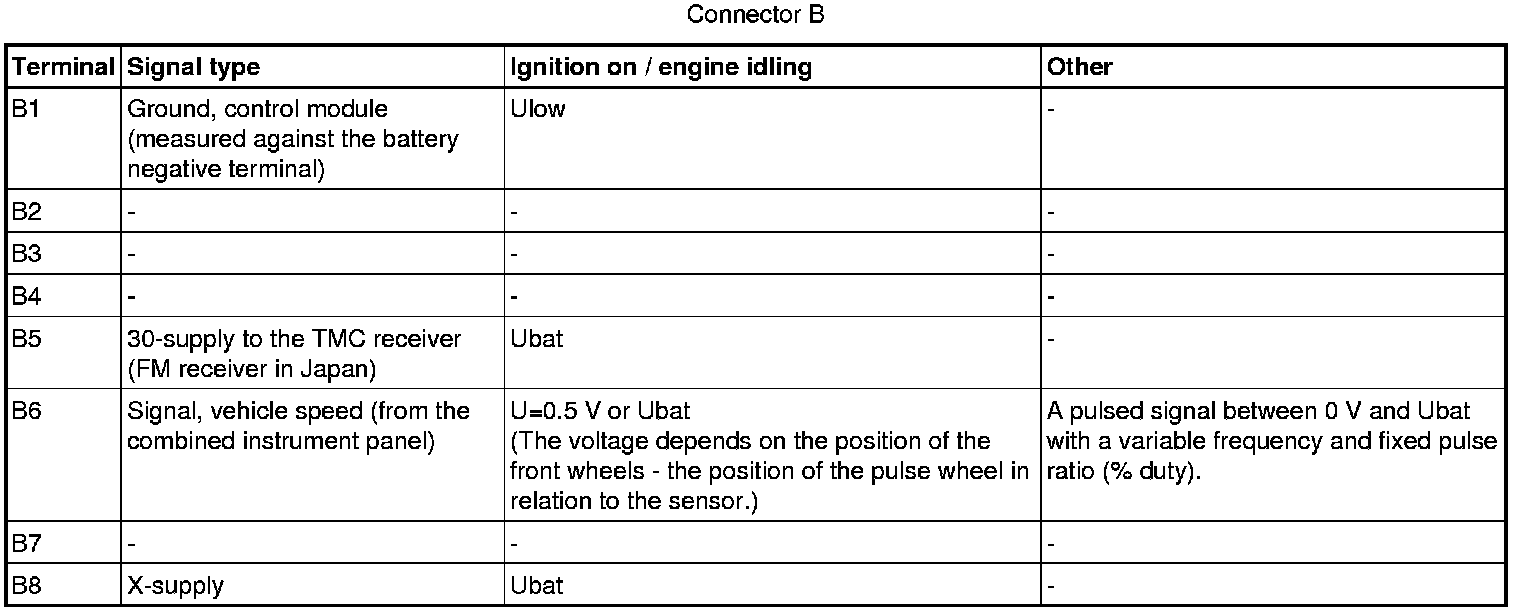

Connector B is on the RTI control module.

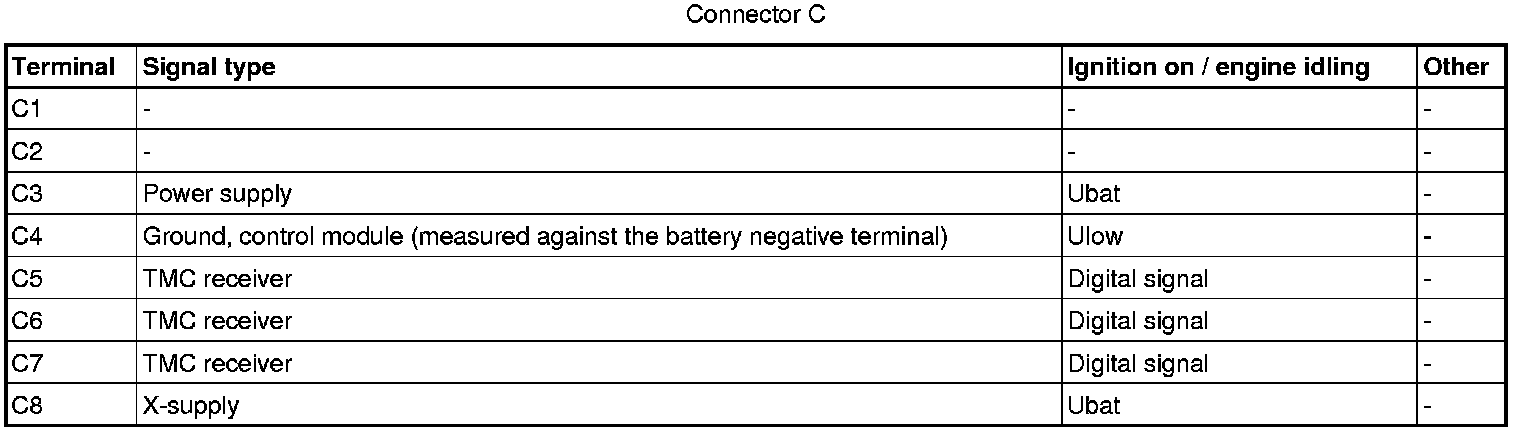

Connector C is on the RTI control module.

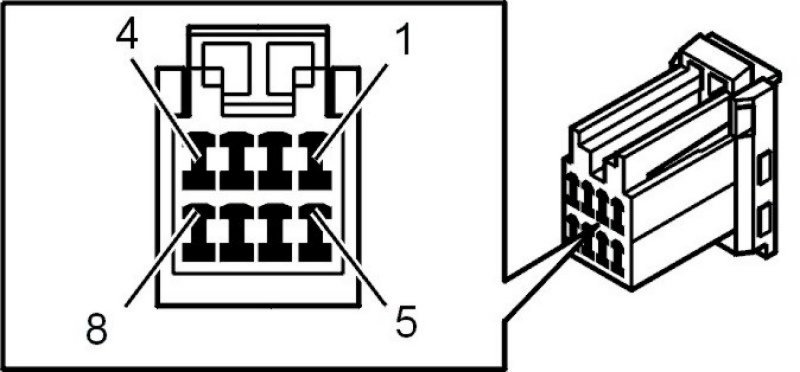

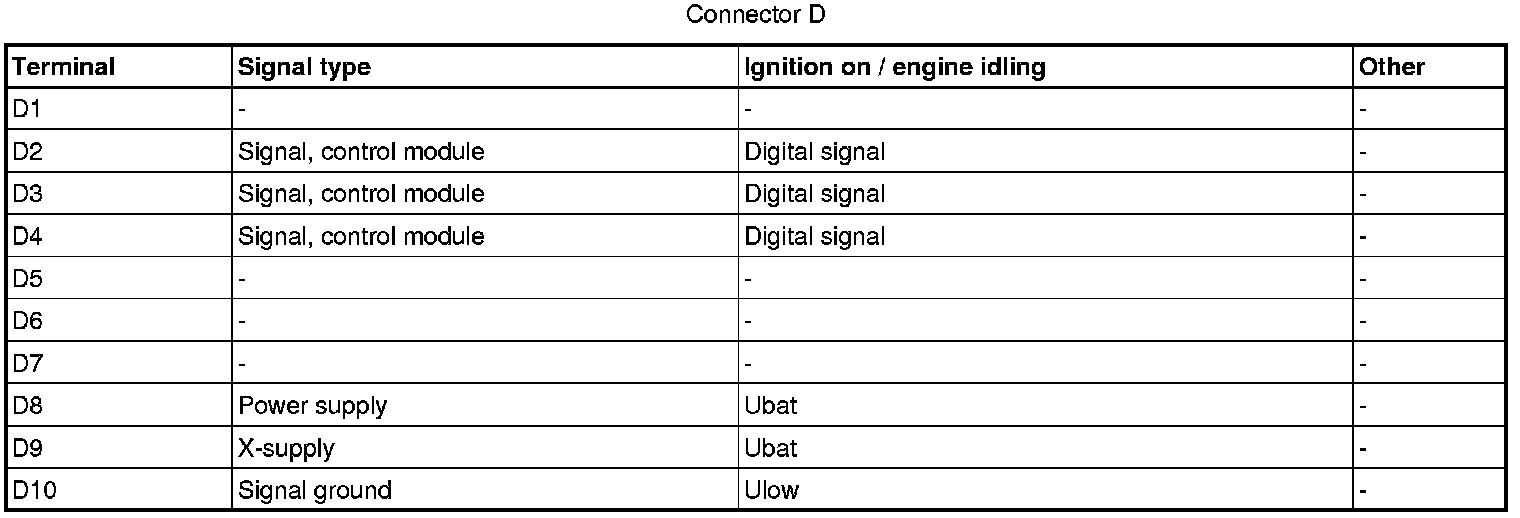

Connector D is on the TCM receiver.

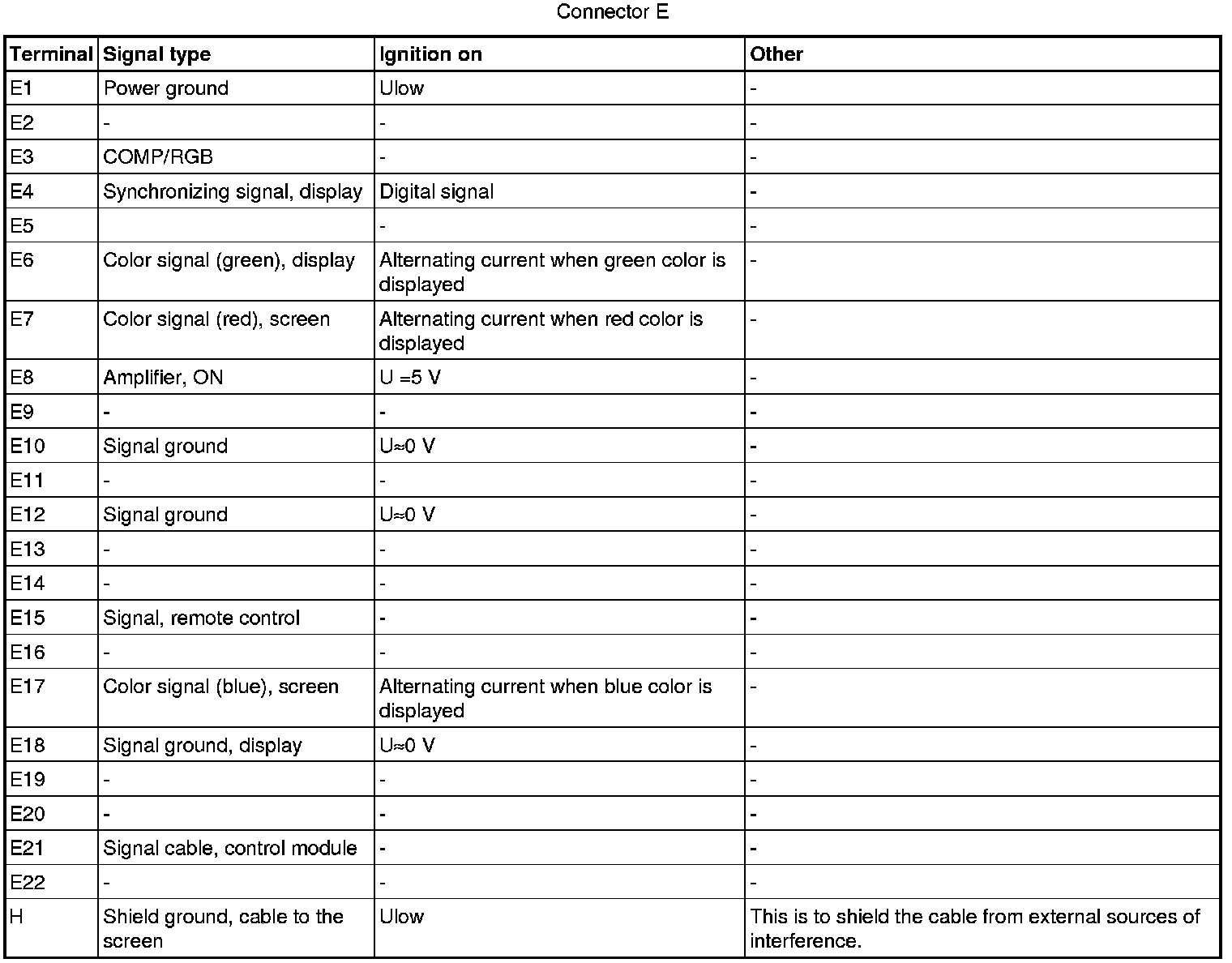

Connector E is on the intermediate stage.









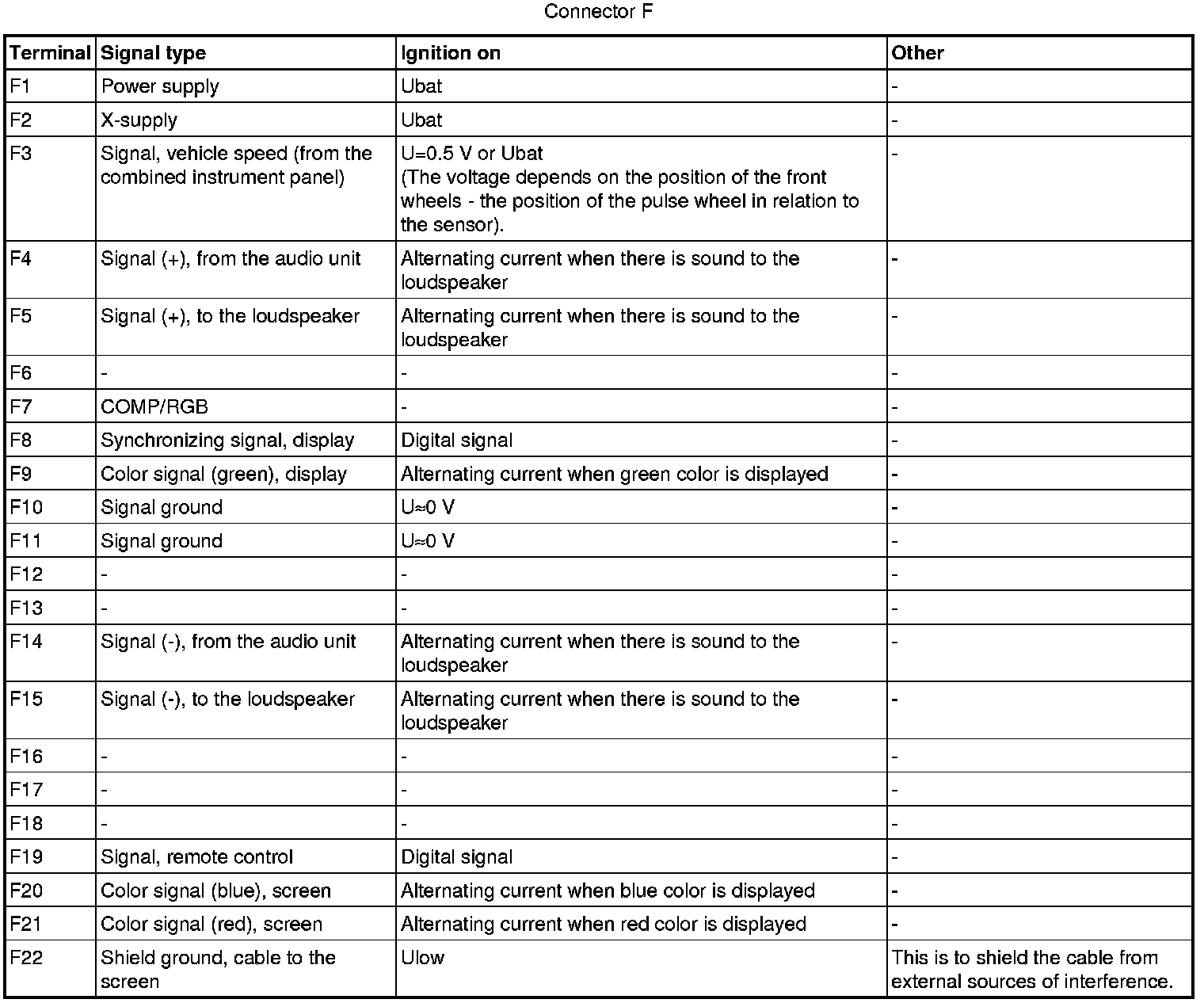

Connector F is on the intermediate stage.

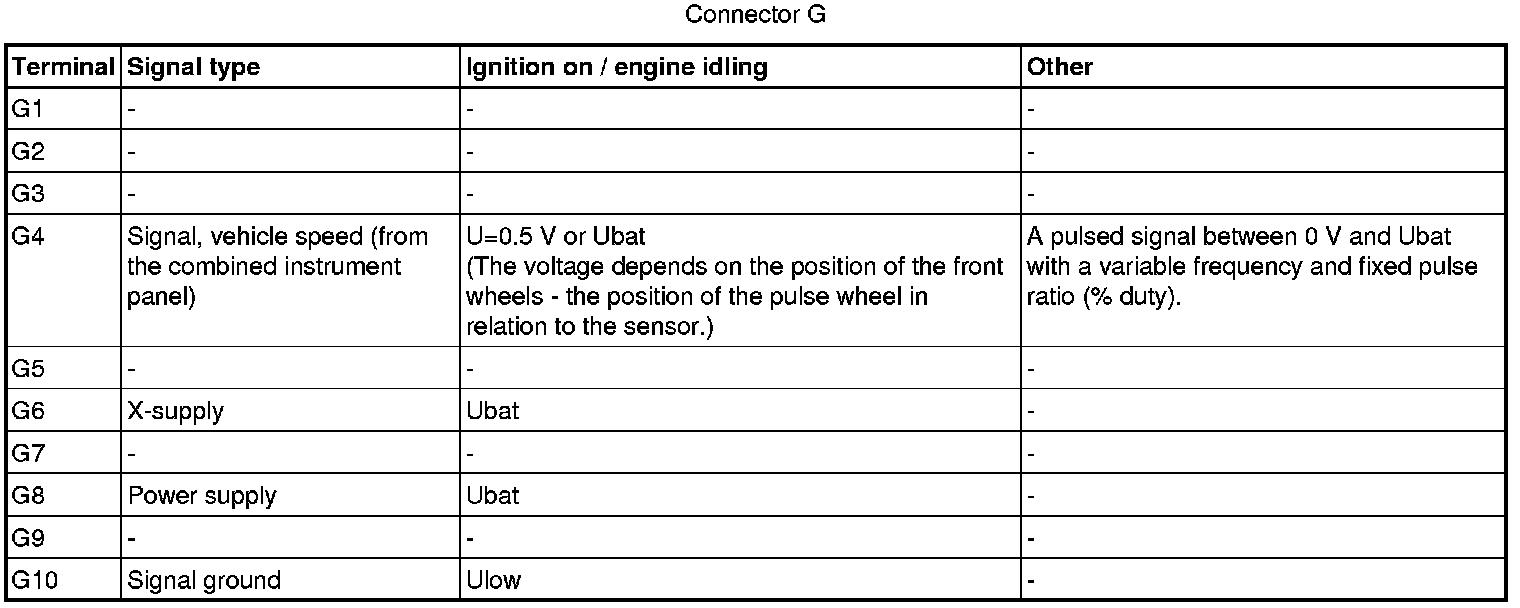

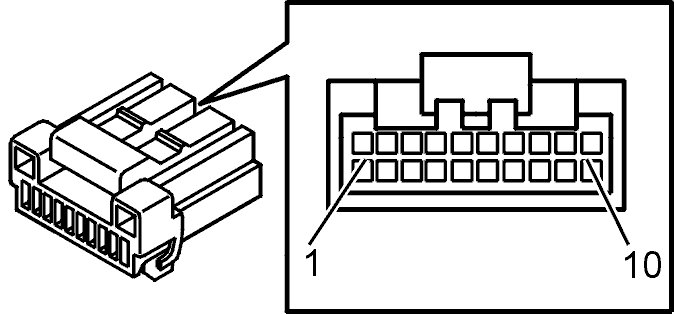

Connector G is on the intermediate stage.

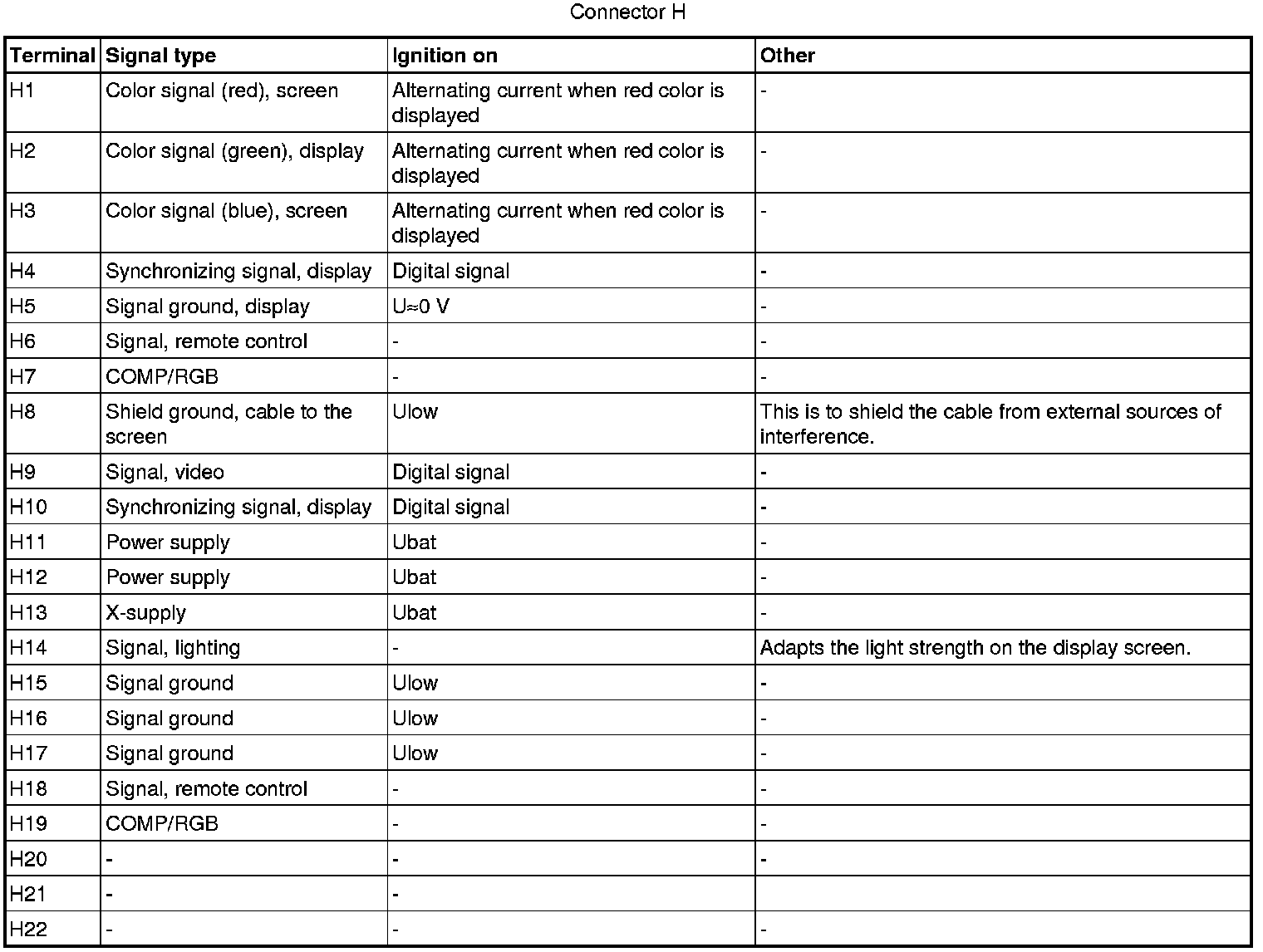

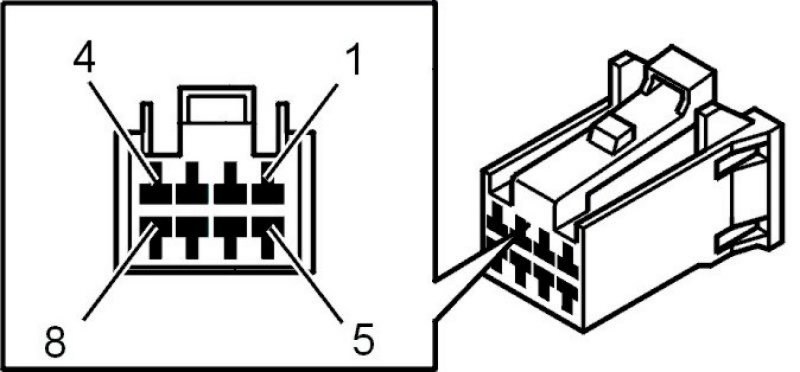

Connector H is on the display screen.
