Signal Specification Road Traffic Information (RTI)

Signal specification Road Traffic Information (RTI)

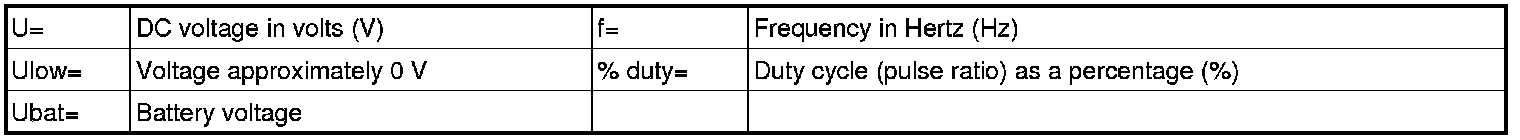

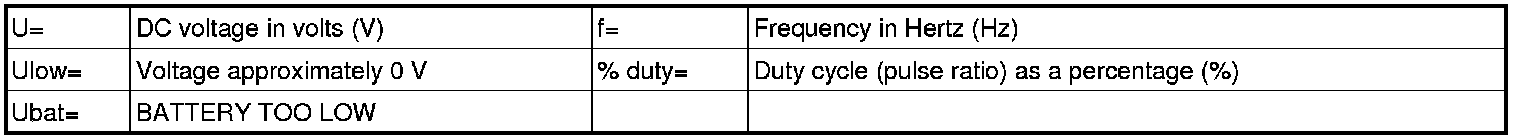

All values given below are between the respective terminal in column 1 and terminal 8B (ground) unless otherwise stated in brackets after the table entry.




The MSA engine control module (ECM) terminals A1-A30 correspond to #1-#30 on the breakout box.




The RTI control module terminals B1-B16 correspond to #31-#46 on the breakout box.

Note! It is important to connect the breakout box according to Connecting the breakout box Connecting the Breakout Box and check the ground terminal before measuring.

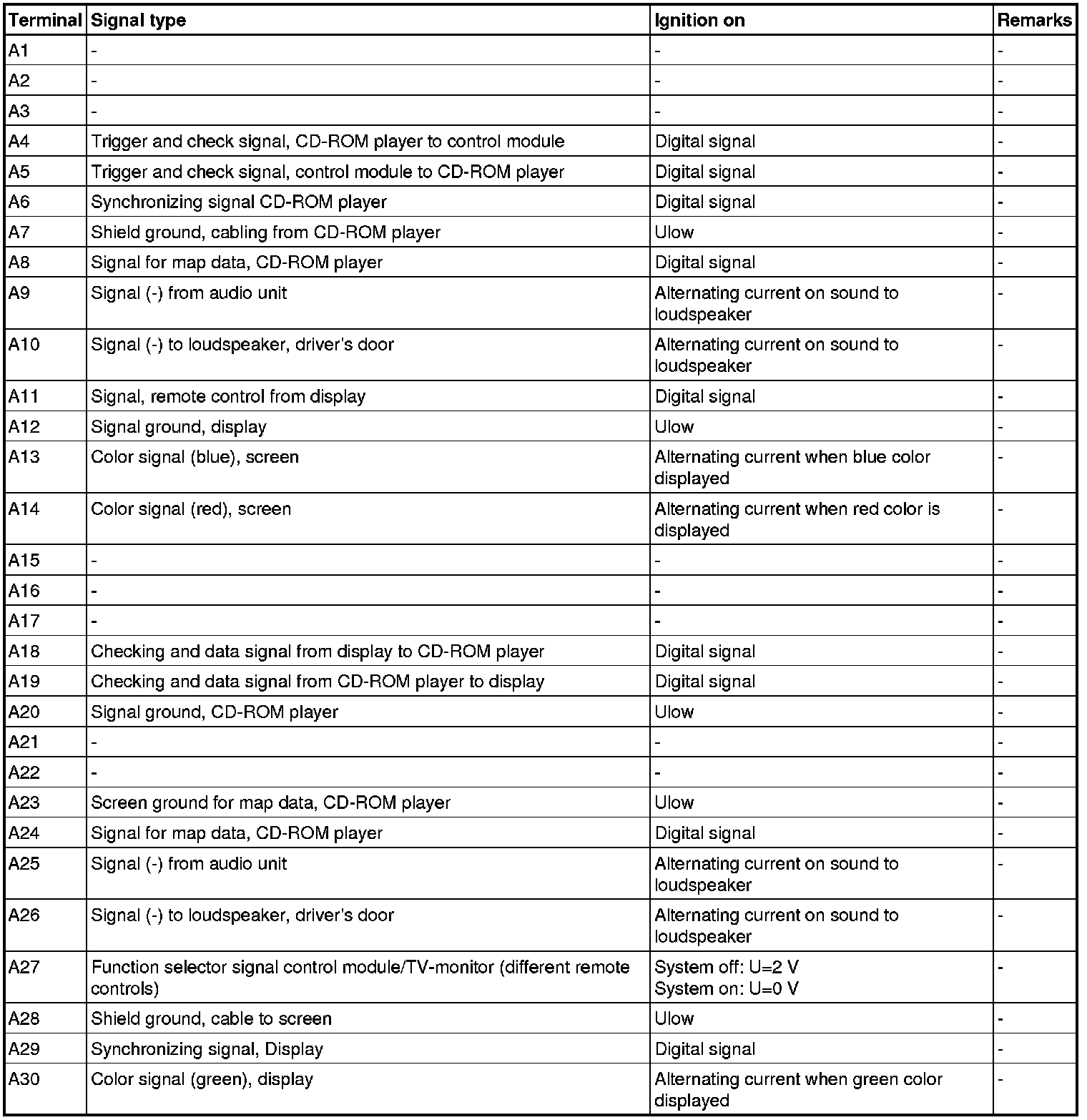

Connector A, A1-A30

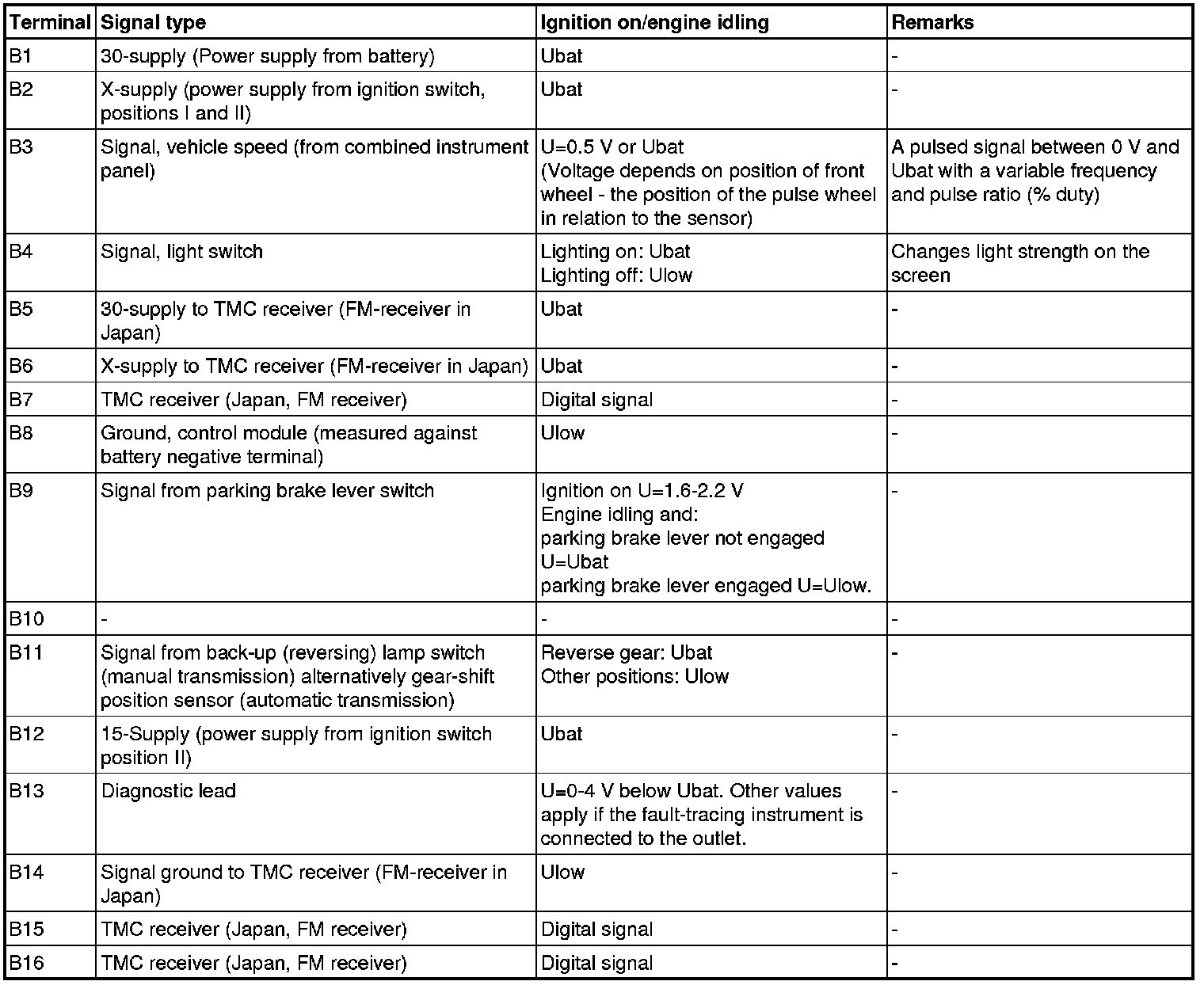

Connector B B1-B16
