Fault-Tracing Information

Fault-tracing information

Condition




- Diagnostic trouble codes (DTCs) missing.

Possible source

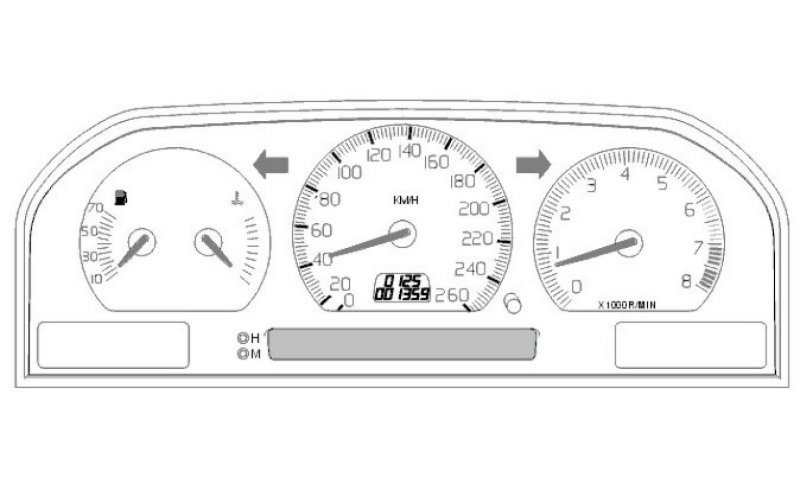

- Open-circuit in signal cable from combined instrument panel.
- Short-circuit to ground or voltage in signal cable from combined instrument.
- Contact resistance in terminals.
