Fault-Tracing Information






Fault-tracing information

Condition




- no diagnostic trouble codes (DTCs) stored

Possible source

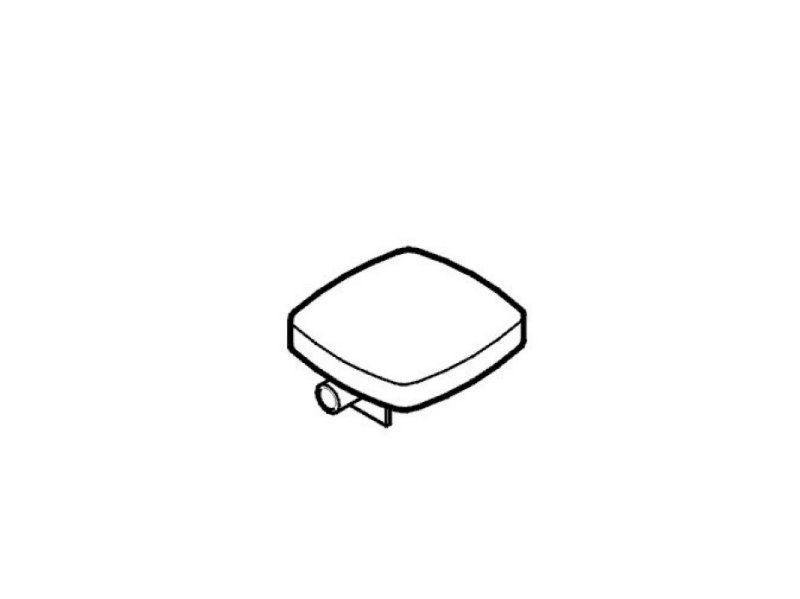

- Open-circuit in signal cable from GPS antenna.
- Short-circuit to ground or voltage in signal cable from GPS antenna.
- Contact resistance in terminals.
