Global Positioning System Antenna: Service and Repair

Replacing GPS antenna

Removing GPS antenna




- Ignition off.

Remove:
- cover panel from dashboard according to Panel and SRS passenger airbag module Panel and SRS Passenger Airbag Module

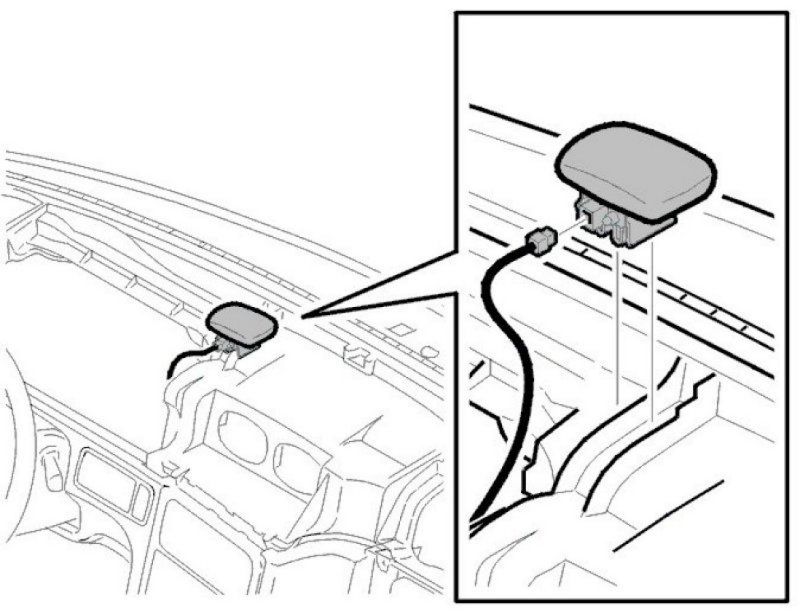

- the GPS antenna by pulling it up.

Installing GPS antenna
In reverse order.

Finishing
- Check that the system appears to be working normally.
- Check no diagnostic trouble codes (DTCs) have been stored during the repair.
