Replacing the Tilt Sensor (2/4-Door)

Replacing the tilt sensor (2/4-door)

Removing the tilt sensor (2/4-door)

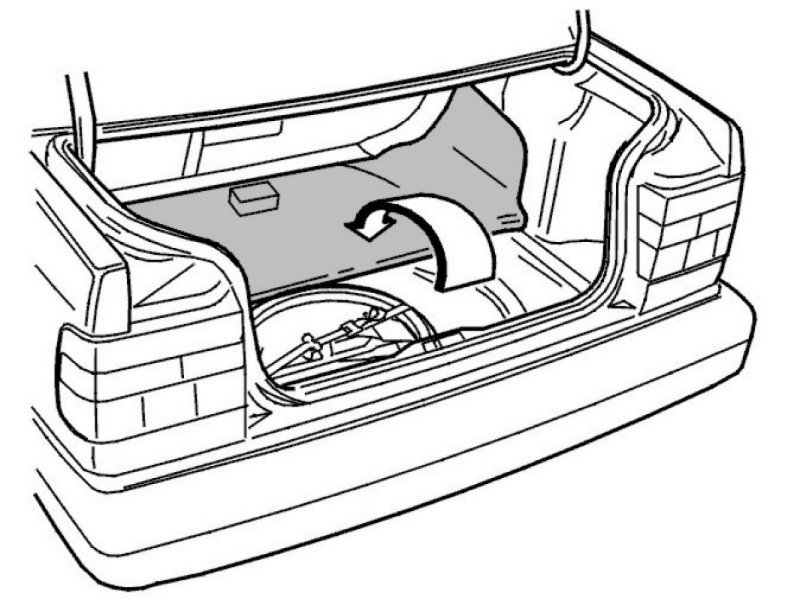

- Fold up the carpet.

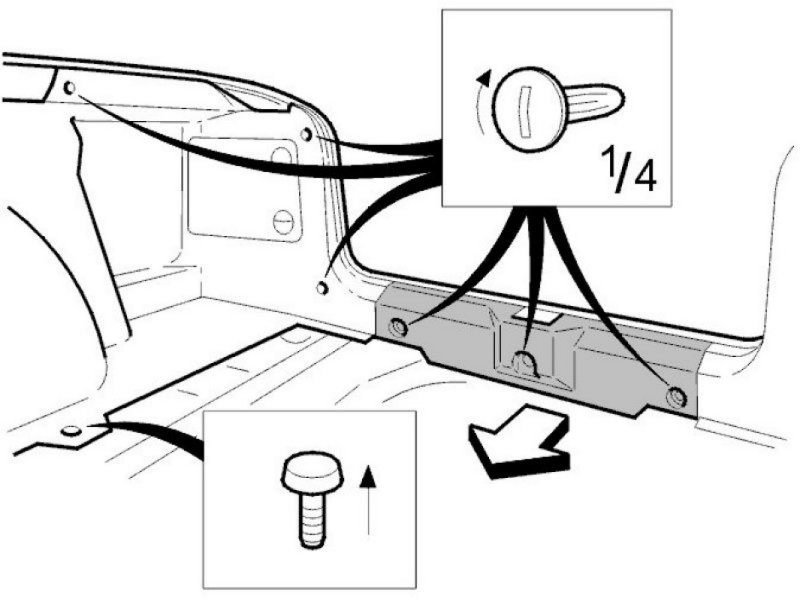

- Remove the rear crossmember panel.




- Detach the side panel. Push it to one side.

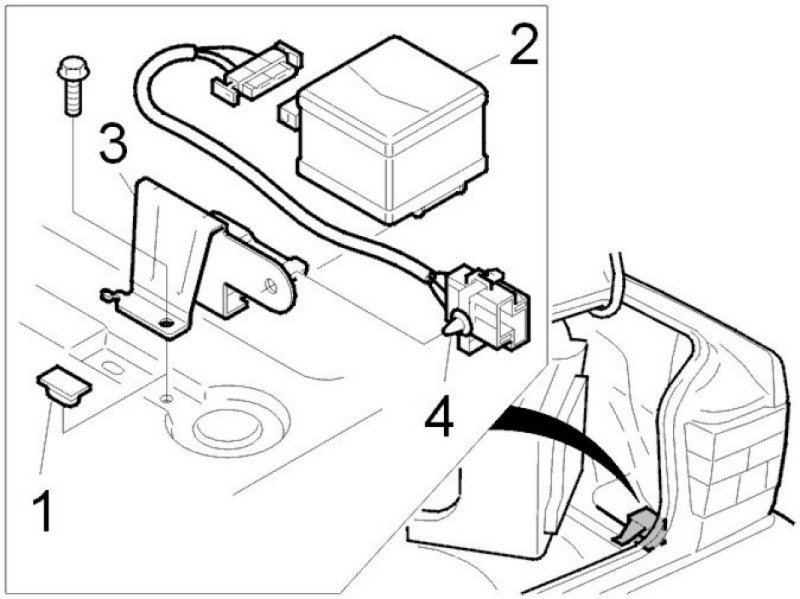

- Disconnect the connector from the tilt sensor.
- Remove the tilt sensor from the bracket.

Installing the tilt sensor (2/4-door)
In reverse order.
