Replacing the Tilt Sensor

Replacing the tilt sensor

Removing the tilt sensor





Remove:
- the seat cushion from the rear seat. Rear seats Rear Seats.

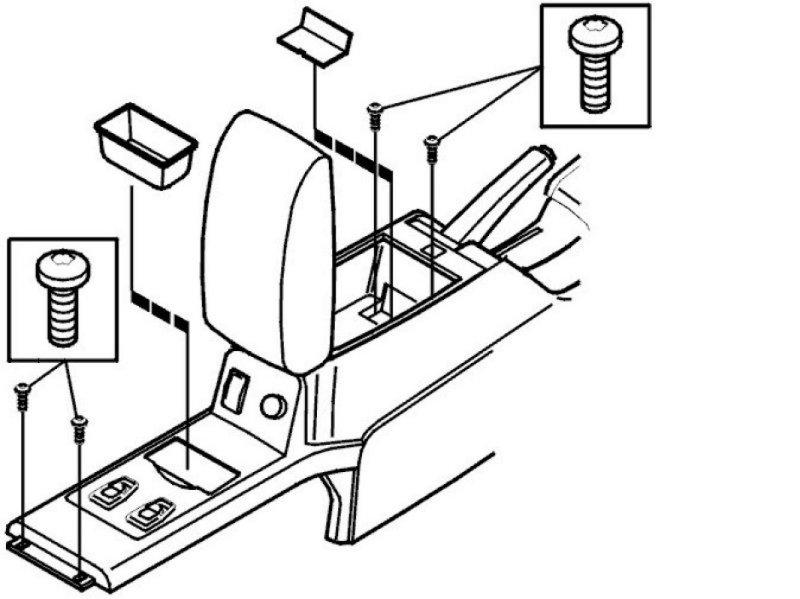

- the 2 screws under the cover in the center console locker.
- the 2 screws at the rear edge of the center console.




Lift the rear edge of the center console.

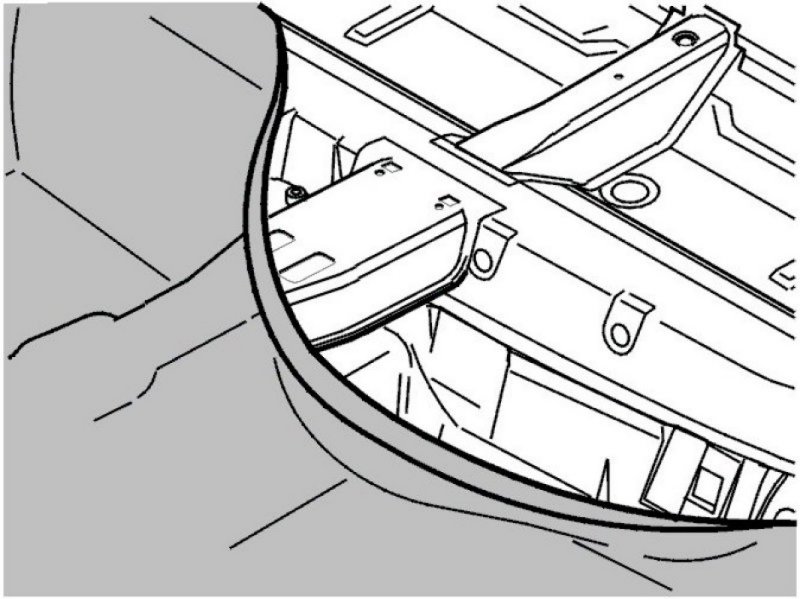

Fold the floor carpet out of the way.

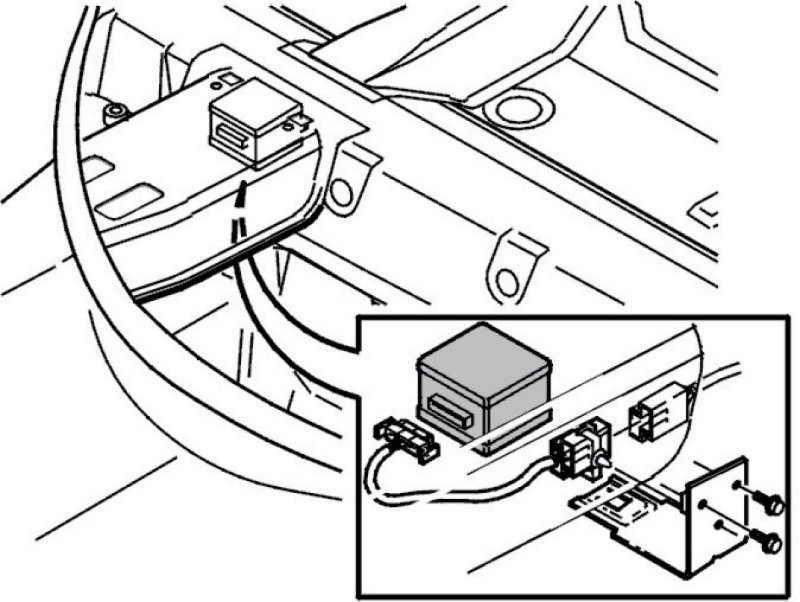

Disconnect the connector from the tilt sensor.
Remove the tilt sensor from the bracket.

Installing the tilt sensor
Install in reverse order.
