Connecting the Breakout Box, Immobilizer






Connecting the breakout box, Immobilizer

Special tools:
981 3194 Replaced by 9511495 981 3194 Replaced by 951 1495
981 3190 Replaced by 9511428 981 3190 Replaced by 951 1428

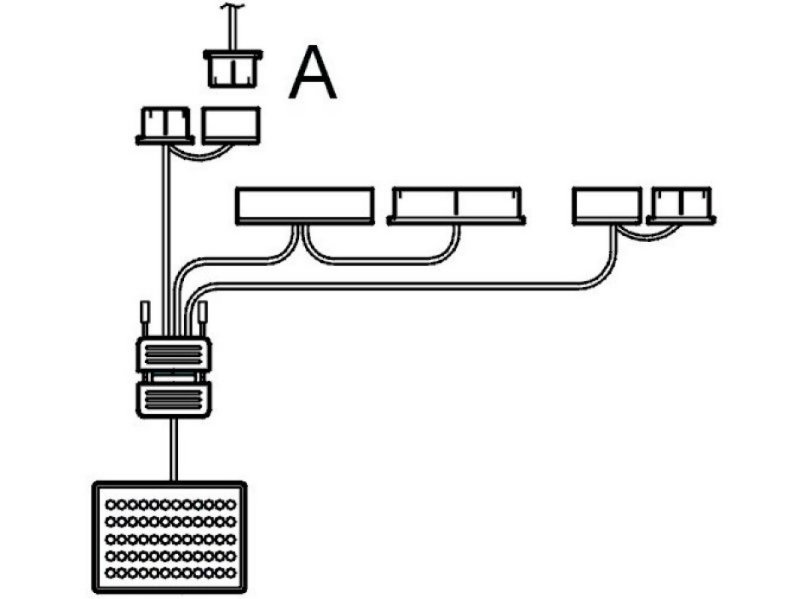

Connecting the breakout box to immobilizer connector (A)




- Ignition off
- Remove the control module from the bracket. See Replacing immobilizer control module Replacing Immobilizer Control Module
- Disconnect the connector (A) from the control module.
Connect one of the 10-pin connectors on adapter 981 3194 Replaced by 9511495 981 3194 Replaced by 951 1495 to the connector (A). Connect breakout box 981 3190 Replaced by 9511428 981 3190 Replaced by 951 1428 to the adapter.
For further information about signals and other values, see Immobilizer signal specification Immobilizer Signal Specification.
