Checking Movement Sensor

Checking movement sensor

Checking movement sensor function

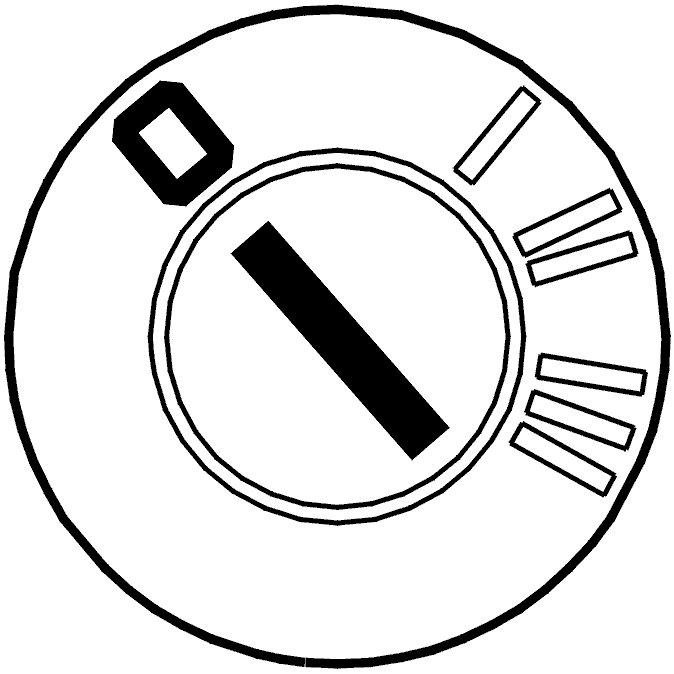

- Ignition off.
- Remove the key from the ignition switch.
- Close all the doors including hood and tailgate.
- Open the driver's door window completely.
- Lock the car using the remote control to arm the alarm.
- Wait approximately 25 seconds (so that the alarm goes into monitoring mode).
Lean into the car and wave your arms.

Note! Be prepared to deactivate the alarm by unlocking the car with the remote control. The audible signal is very loud.

The alarm should be triggered - it should produce audible and visible alarms.

Is the function OK?

Yes - No Fault Found

No - Replacing component

-------------------------------------------------

Replacing component
Try a new movement sensor according to Replacing the movement sensor Service and Repair.


Continue - Verification
FAULT FOUND

-------------------------------------------------

Verification

Hint: After carrying out the repair, check that the fault has been remedied as follows.




- Ignition off.
- Remove the key from the ignition switch.
- Close all the doors. Close the hood and the tailgate.
- Open the driver's door window completely.
- Lock the car using the remote control to arm the alarm.
- Wait approximately 25 seconds (so that the alarm goes into monitoring mode).
Lean into the car and wave your arms.

Note! Be ready to shut off the alarm by unlocking the car with the remote control, the alarm is very loud.

The alarm should be triggered - it should produce audible and visible alarms.

Is the function OK?

OK - FAULT FOUND

Not OK - Fault-tracing information
No Fault Found

-------------------------------------------------

Fault-tracing information




Information

Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.

Do you want to exit fault-tracing?

Yes - Exit fault-tracing

No - Attempt New Test

------------------------

Attempt New Test - Checking movement sensor function

-------------------------------------------------
