Signal Too Low
Signal too low
Checking vehicle speed sensor (VSS) signal
- Ignition off.
- Raise car so that drive wheels are unimpeded.
- Start the engine and let it idle.
- Shift gear selector to position D so that the drive wheels begin to rotate.
- Read off the transmission speed.
Check that speed is updated.
Note! When the rear wheels are stationary and the front wheels rotate, diagnostic trouble codes (DTCs) can be stored in the ABS system. Erase any diagnostic trouble codes (DTCs) stored in the ABS system after fault-tracing.
Note! Ensure that the wheels are not rotating when the gear selector is moved.
Was speed updated?
Yes - Intermittent fault
No - Checking cables and sensors
-------------------------------------------------
Checking cables and sensors
- Ignition off.

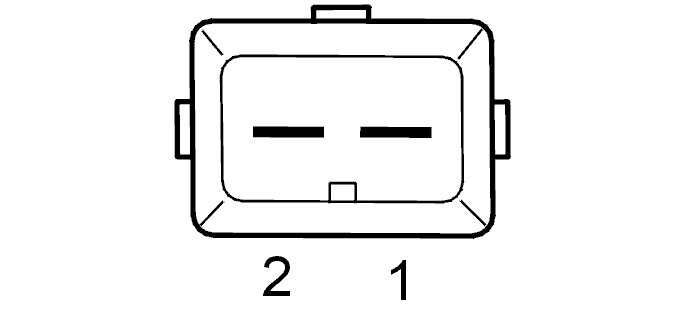

Check power supply cable between control module #A57 and vehicle speed sensor (VSS) connector #1 for an open-circuit according to Checking wiring and terminals. Permanent fault Checking Wiring and Terminals. Permanent Fault and for a short-circuit to ground according to Checking wiring and terminals. Permanent fault Checking Wiring and Terminals. Permanent Fault.
Check signal cable between control module #A39 and vehicle speed sensor (VSS) connector #2 for an open-circuit according to Checking wiring and terminals. Permanent fault Checking Wiring and Terminals. Permanent Fault and for a short-circuit to ground according to Checking wiring and terminals. Permanent fault Checking Wiring and Terminals. Permanent Fault.
Hint: With control module connected, ignition on and a voltmeter connected between speed sensor connectors #1 and #2 (control module side), the voltage should be approximately 8-12 V.
Remedy as necessary.
Other information:
- To connect the breakout box, see Connecting breakout box, Transmission control module (TCM) Connecting Breakout Box, Transmission Control Module (TCM).
- To disconnect control module, see Replacing the gearbox control module (TCM) .
- To check/replace speed sensor, see Replacing vehicle speed sensor (VSS) .
- For information about signals, see Signal specification, Transmission control module (TCM) Signal Description AW50-42.
Continue - Verification
-------------------------------------------------
Verification
Verification
Hint: After carrying out the repair, check that the fault has been remedied.
- Ignition off.
- Reinstall connectors, components etc.
- Raise car so that drive wheels are unimpeded.
- Start the engine and let it idle.
- Gear selector in position D so the front wheels start to rotate.
- Read off the transmission speed.
Depress the accelerator pedal (AP) and check that engine speed (RPM) is updated
Is engine speed (RPM) updated?
Yes - VERIFIED
No - VERIFICATION FAILED
------------------------
VERIFIED - FAULT FOUND
VERIFICATION FAILED - Fault-tracing information
-------------------------------------------------
Fault-tracing information
Information
Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.
Do you want to exit fault-tracing?
Yes - Exit fault-tracing
No - Attempt New Test
------------------------
Attempt New Test - Checking vehicle speed sensor (VSS) signal
-------------------------------------------------
Intermittent fault
- Ignition off.
Check power supply cable between control module #A57 and vehicle speed sensor (VSS) connector #1 for an intermittent open-circuit according to Checking wiring and terminals. Intermittent faults Checking Wiring and Terminals. Intermittent Faults and an intermittent short-circuit to ground according to Checking wiring and terminals. Intermittent faults Checking Wiring and Terminals. Intermittent Faults.
Check signal cable between control module #A39 and vehicle speed sensor (VSS) connector #2 for an intermittent open-circuit according to Checking wiring and terminals. Intermittent faults Checking Wiring and Terminals. Intermittent Faults and an intermittent short-circuit to ground according to Checking wiring and terminals. Intermittent faults Checking Wiring and Terminals. Intermittent Faults.
Remedy as necessary.
Other information:
- To connect the breakout box, see Connecting breakout box, Transmission control module (TCM) Connecting Breakout Box, Transmission Control Module (TCM).
- To disconnect control module, see Replacing the gearbox control module (TCM) .
- For information about signals, see Signal specification, Transmission control module (TCM) Signal Description AW50-42.
Continue - Fault-tracing information
-------------------------------------------------
Fault-tracing information
Information
Fault-tracing information
If the fault is intermittent, do not verify fault-tracing if the fault does not recur.
It is possible to view the information again, or leave fault-tracing for this diagnostic trouble code (DTC).
Do you want to view the information again?
Yes - Attempt New Test
No - FAULT FOUND
------------------------
Attempt New Test - Checking vehicle speed sensor (VSS) signal
-------------------------------------------------
