Signal Too High. Permanent Fault

Signal too high. Permanent fault

Checking wiring and components




- Ignition off.

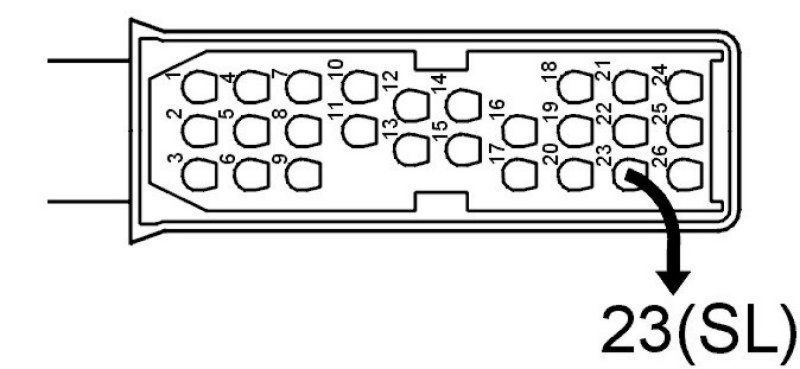

Check cable between control module #A51 and transmission connector (control module side) #23 and lock-up solenoid SL for a short-circuit to supply voltage according to Checking wiring and terminals. Permanent fault Checking Wiring and Terminals. Permanent Fault.
Check cable between transmission connector (transmission side) #23 and lock-up solenoid SL for a short-circuit to supply voltage according to Checking wiring and terminals. Permanent fault Checking Wiring and Terminals. Permanent Fault.
Remedy as necessary.

Other information:
- To connect the breakout box, see Connecting breakout box, Transmission control module (TCM) Connecting Breakout Box, Transmission Control Module (TCM).
- To disconnect transmission connector, see Inspecting/cable harness to solenoids .
- To check/replace lock-up solenoid SL, see Inspecting / replacing solenoids .
- For information about signals, see Signal specification, Transmission control module (TCM) Signal Description AW50-42.









Was a fault detected?

Yes - Resetting adaptation and oil quality counter

No - No Fault Found

-------------------------------------------------

Resetting adaptation and oil quality counter





Resetting the adaptation

Resetting adaptation and the counter for "Transmission oil change"

Hint: The transmission has torque controlled adaptive pressure control. Pressure control means that the transmission regulates the pressure itself during each gear shift. This avoids harsh gear shifting. Each gear shift is evaluated by the control module and stored in the memory. This allows for compensation for wear and tear in the transmission and clutch. It is important that the adaptation in the memory is reset after the transmission has been repaired. This is to ensure normal operation. The oil is replaced during repair; the "Transmission oil change" counter must be reset. If the counter is not reset when the fluid is drained and replaced, there is a risk that a diagnostic trouble code (DTC) will be stored in incorrect circumstances.

Note! This applies only if the transmission or one of the components in the transmission have been replaced.




- Ignition on.
Click on the VCT2000 symbol to reset the adaptation and counter.





Continue - DONE

------------------------

DONE - Verification

-------------------------------------------------

Verification




Verification

Hint: After carrying out the repair, check that the fault has been remedied.








- Ignition off.
- Reconnect connectors, reinstall components
- Ignition on.
- Gear selector in position P.
- Activate solenoid SL.
The value should change between OFF and ON.





Does the value change?

Yes - VERIFIED

No - VERIFICATION FAILED

------------------------

VERIFICATION FAILED - Fault-tracing information

VERIFIED - FAULT FOUND

-------------------------------------------------

Fault-tracing information




Information

Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.

Do you want to exit fault-tracing?

Yes - Exit fault-tracing

No - Attempt New Test

------------------------

Attempt New Test - Checking wiring and components

-------------------------------------------------
