Signal Too Low. Intermittent Fault

Signal too low. Intermittent fault

Intermittent fault

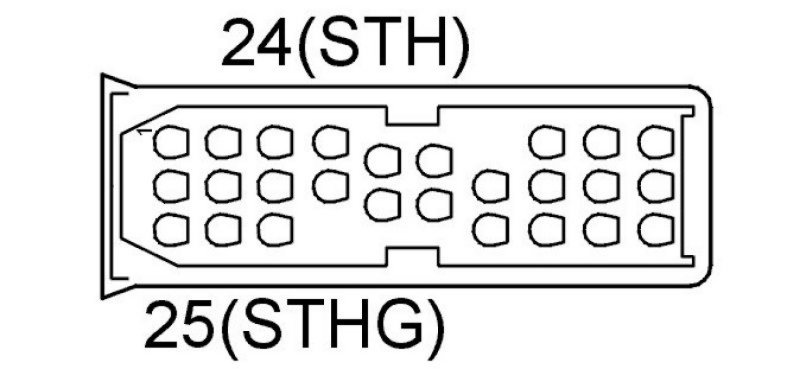

Check wiring between control module #A52 and transmission connector #24 and between control module #A70 (#B10) and transmission connector #25 for an intermittent short-circuit to ground according to Checking wiring and terminals. Intermittent faults Checking Wiring and Terminals. Intermittent Faults.
Check wiring between transmission connector #24 and #25 and the line pressure solenoid connectors for an intermittent short-circuit to ground according to Checking wiring and terminals. Intermittent faults Checking Wiring and Terminals. Intermittent Faults.
Remedy as necessary.

Other information:
- To connect the breakout box, see Connecting breakout box, Transmission control module (TCM) Connecting Breakout Box, Transmission Control Module (TCM).
- To disconnect transmission connector, see Inspecting/cable harness to solenoids .
- To check/replace shift solenoid STH, see Inspecting / replacing solenoids .
- For information about signals, see Signal specification, Transmission control module (TCM) Signal Description AW50-42.









Select Continue when the fault has been remedied.

Continue - DONE Fault-tracing information

-------------------------------------------------

Fault-tracing information




Information

Fault-tracing information
If the fault is intermittent, do not verify fault-tracing if the fault does not recur.
It is possible to view the information again, or leave fault-tracing for this diagnostic trouble code (DTC).

Do you want to view the information again?

Yes - Attempt New Test

No - FAULT FOUND

------------------------

Attempt New Test - Intermittent fault

-------------------------------------------------
